Product Details
Product Description
Product Description

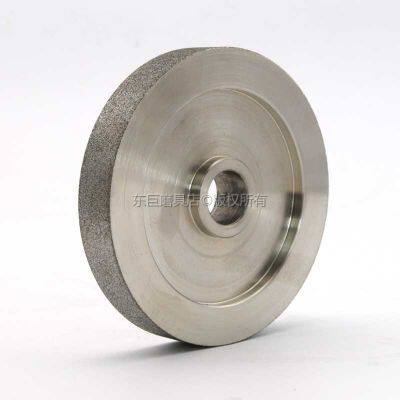

The optical glass diamond grinding wheel uses an electroplated binder, which makes it has high precision and good sharpening.
Which can be used for shaping, forming, and grinding not only a variety of optical lenses and glasses but also gemstones, semiconductors, tungsten carbide.
| Material | Diamond |
| Body | Steel |
| Type | 1A1 |
| Bond | Electroplated/diamond coated |
| D | Diameter 150mm,125mm,100mm,80mm for option |
| d | hole 32mm,25mm,22mm,16mm,12.7mm for option |
| Usage | For optical glass lens grinding |
| Package | 1 piece/lot
|
Default Grit 80#(you can leave message for other grit,customized grit only need 5~7days)
Option code explaination:
D100d22 means Diameter is 100mm hole(small d) is 22mm Grit 80#
D80d12p7 means Diameter is 80mm hole(small d) is 12.7mm(12p7=12.7) Grit 80#
Need customized size and grit,leave message.Customized grinding wheels can be finish within 7 days.
Both diamond and CBN wheels are available.
Diamond and CBN wheel basic knowledge:
Diamond Grinding Wheels are mainly used for machining nonmetallic materials with high rigidity like ceramics, glass, tungsten carbide, ferrite and so on.
CBN Grinding Wheels are mainly used for machining metallic material such as chilled cast iron, founded alloy steel, titanium alloy and so on.
D125T18H22X3G400 is customized diamond grinding wheel Diameter 125mm,Thickness 18mm Hole 22mm, cover edge x=3mm grit 400#
125T10H12.7 SDC400 is customized diamond grinding wheel Diameter 125mm,Thickness 10mm Hole 12.7mm, cover edge x=3mm grit 400#
>>
