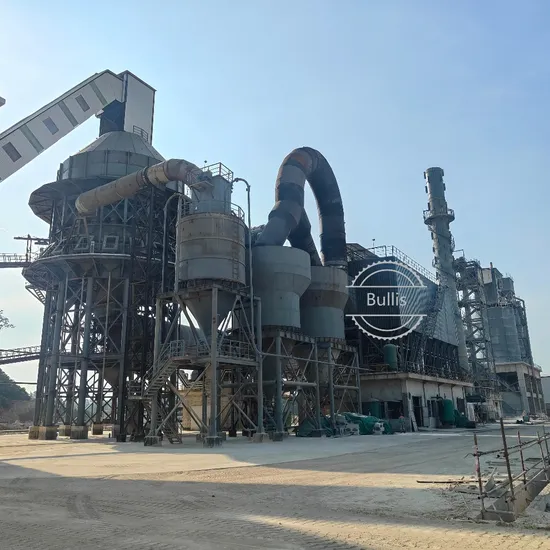

Chinese Advanced Easy Operation Magnesium Metal Rotary Kiln Production Line

Product Description

Rotary kiln refers to a rotating calcining kiln, which belongs to the category of building materials equipment. Rotary kilns can be divided into cement kilns, metallurgical chemical kilns and lime kilns according to different processed materials.
Cement kilns are mainly used for calcining cement clinker and are divided into two categories: dry production cement kilns and wet production cement kilns. The metallurgical chemical kiln is mainly used in the metallurgical industry for magnetization and roasting of lean iron ore in steel plants; oxidation roasting of chromium and nickel iron ore; high-alumina bauxite roasting in refractory materials plants and aluminum hydroxide roasting of clinker in aluminum plants. Chemical plants use rotary kilns to roast chromium ore and chromium ore powder and other similar minerals. Lime rotary kiln is used for roasting activated lime and light burnt dolomite used in steel plants and ferroalloy plants.
Product Parameters

Basic Parameters
Product Name	Rotary Kiln
Mode	Φ1x15m-Φ6.0x90m
Capacity	100-1200 tpd
Fuel	Natural Gas, Coal, Natural gas, coal, gas, biomass pellets, heavy oil, etc.

Main Technical Specifications
Model	Diameter/m	Length/m	Slope/%	Capacity(t/d)	Rotating Speed	Motor Powder/kw
Φ2.5x40m	2.5	40	3.6	180	0.44-2.44	55
Φ2.5x50m	2.5	50	3.0	200	0.62-1.86	55
Φ2.5x54m	2.5	54	3.5	280	0.48-1.45	55
Φ2.7x42m	2.7	42	3.5	320	0.10-1.52	55
Φ2.8x44m	2.8	44	3.5	450	0.437-2.18	55
Φ3.0x45m	3.0	45	3.5	500	0.5-2.47	75
Φ3.0x48m	3.0	48	3.5	700	0.6-3.48	100
Φ3.0x60m	3.0	60	3.5	800	0.3-2.0	100
Φ3.2x50m	3.5	50	4.0	1000	0.6-3.0	125
Φ3.3x52m	3.3	52	3.5	1300	0.266-2.66	125
Φ3.5x54m	3.5	54	3.5	1500	0.55-3.4	220
Φ3.6x70m	3.6	70	3.5	1800	0.25-1.25	125
Φ4.0x56m	4.0	56	4.0	2300	0.41-4.07	315
Φ4.0x60m	4.0	60	3.5	2500	0.396-3.96	315
Φ4.2x60m	4.2	60	4.0	2750	0.41-4.07	375
Φ4.3x60m	4.3	60	3.5	3200	0.396-3.96	375
Φ4.5x66m	4.5	66	3.5	4000	0.41-4.1	560
Φ4.7x74m	4.7	74	4.0	4500	0.35-4.0	630
Φ4.8x74m	4.8	74	4.0	5000	0.396-3.96	630
Φ5.0x74m	5.0	74	4.0	6000	0.35-4.0	710
Φ5.6x87m	5.6	87	4.0	8000	Max 4.23	800
Φ6.0x95m	6.0	95	4.0	10000	Max 5.0	950*2

Process Flow Chart

---
