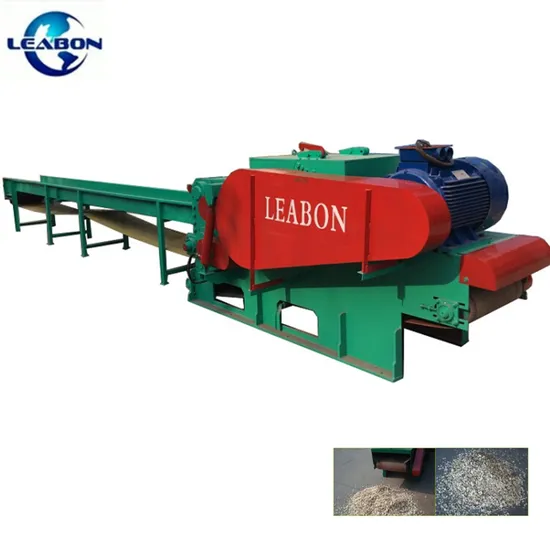

Forest Work Used Waste Wood Processing Drum Wood Chipper

Product Description

Forest Work Used Waste Wood Processing Drum Wood Chipper Product Description Introduction of drum wood chipper:
1, It is one special equipment for high quality wood chips. And the final chips are widely used to make the flake board, fiber board,
building board,straw powder plant.
2, The drum chipper is of compact structure, easy operation, high capacity, wide raw materials adaptability, high quality, safe and reliable,
convenient maintenance.
Product Structure Structure as follow:
The machine is made up of body, knife roller, the upper and lower feed roller,conveyor belt,hydraulic system. Product Parameters Technical parameter of drum wood chipper:

Model	BX-315	BX-316	BX-318	BX-2113	BX-3113
Power of main motor(kw)	45	55	110	220	220
Q'T'Y of flying blades(pcs)	4	4	4	4	4
Opener size(mm)	400*170	540*220	680*270	700*400	700*510
Input max diameter(mm)	150	200	250	300	450
Length of chips(mm)	10-20	10-20	15-25	15-20	20-30
Capacity(tons/h)	3-5	8-12	15-25	25-35	35-45
Dimension of main machine(m)	2.6*1.8*1.4	3.1*2.0*1.5	3.5*2.18*1.8	3.68*2.45*2.05	5.1*2.7*2.3
Weight of main machine(kg)	3380	4680	8320	11850	14000

Spare parts Spare parts as follow:
Raw Material&Final Product Drum chipper can process woods with suit diameter,timber harvesting,wood cutting remains (branches),wood processing remains(saw mill residue) and even other no wood material (reed,bamboo).
Final chips:
Customer using site:
Packaging & Shipping standard packaging andoceanshipping
Company Profile Our company:
Woodworking machines in factory:
Customer feedback
Note:
