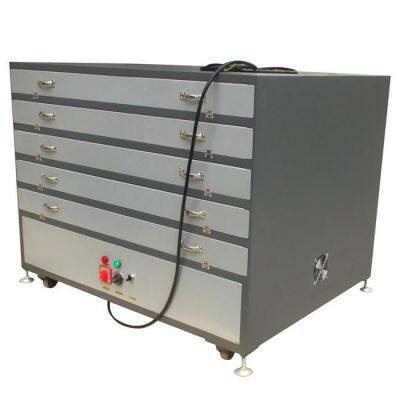

TDP-70100 drying cabinet for screens when coated with emulsion

Product Details

Product Description

Product Description
Product DescriptionTDP-70100 drying cabinet for screens when coated with emulsion
Stencil dryer Fit for TMP-70100 screen printer

MOLDE	TDP-70100	TDP-6090	TDP-90120	TDP-12140
MAX PLATE SIZE(mm)	900*1200	800*1000	1100*1400	1400*1600
power(v/hz)	380/50 or 20/50	380/50 or 220/50	380/50 or 20/50	380/50 or 20/50
power(kw)	4*1kw	4*1kw	5*1kw	6*1kw
Heating pipe	stainless steel	stainless steel	stainless steel	stainless steel
Temprature	0~200deg	0~200deg	0~200deg	0~200deg
Timer	0.5~2 H	0.5~2 H	0.5~2 H	0.5~2 H
machine size	1500*1200*1100	1400*1100*1100	1400*1700*1100	1700*1900*1100
weight	150kg	100kg	200kg	250kg
plywood	about 3.1 CBM	about 2 CBM	about 4 CBM	about 4.2 CBM

1)Applicable Scope and advantage
Screen printing drying cabinet is applied to drying the screen plate.
This drying cabinet inside installed axial flow fan makes the hot air in circulation, which guarantees an equal temp in cabinet and can improve drying efficiency meanwhile The axial flow fan can normally be used for about 20,000 hours. It usually takes 2~4 minutes to well dry the screens coated with the photosensitive emulsion
2)Feature:
1,Hot air circulation system ensure constant temperature,save energy, compared with traditional 7000~8000W drying cabinet, this equipment can save power 3%~4% .
2,CNC control system ,make the operation easily.
3,The specification could be made as customers requirement
Hot Tags：Stencil dryer，drying cabinet for screens ,china stencil oven suppliers,screen printing plate oven manufactures,stencil dryer factory,drying machine company.
Payment Terms︰ TT

---
