Product Details
Product Description
Product Description
Why Choose HOLYKELL HPT604 Seires?
1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time;
Its service life is 2-3 times of similar products.
2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;
Anti-interference is enhanced by 300%, the stability is over 10 years.
3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities,
prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.
4. Automatic temperature compensation, -40 ~ 85℃, autocorrection temperature drift.
5. Five layers of seamless and waterproof dustproof connection design, international level IP68;
12 mm waterproof and oil-proof cables, the service life is more than 10 years.
*About HPT604 Level Sensor

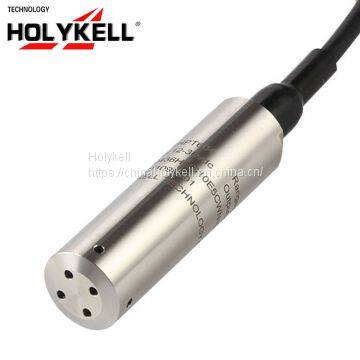

HPT604 is a submersible level sensor transducer suitable for liquid level or pressure and depth measurement. It made of 316 SS housing. Its all stainless steel, suitable for immersion in most industrial liquids and oils.The welded housing is tested in-house via a helium leak tester to ensure proper protection. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The HPT604 Submersible Liquid Level Transmitter can be used to measure water level; well depth; groundwater level; bore well, underground water, river etc,.
Basic Parameters of HPT604 Level/Pressure Sensor
Parameter:
| Water / fuel level sensor
|
Pressure Range:
| 0-0.1 Bar…..50 Bar / 0-1M……..500M H2O Optional
|
Overload:
| 150% F.S.
|
Burst Pressure
| 300% F.S.
|
Accuracy:
| ≤ ±0.5%F.S; ≤ ±0.25%F.S; ≤ ±0.1%F.S
|
Long Stability:
| Typical value: 0.1%F.S, Maximum value: 0.2%F.S
|
Working Temp:
| -40℃~85℃ OR -40℃~100℃(Customized)
|
Temperature Compensation:
| -10℃~65℃ OR -20℃~80℃(Customized)
|
Medium compatible:
| Compatible with 316L Stainless Steel
|
Electronic Wire:
| 2 Wires
| 3 Wires
| 4 wires
|
Output:
| 4~20mA
| 1~5V
0~5V
| 0~10 V
| 0.5~4.5 V
Ratiometric
| 0-100 mV/V
| RS485 Modbus RTU
|
Power Supply:
| 12~36 V DC
| 10~36 Vdc
| 15~36 Vdc
| 5 Vdc
| 10 Vdc
| 10~30 VDC/2.7~5.5VDC
|
Insulate resistance:
| >100M Ω@100V
|
Response time:
| ≤1 ms (Customized)
|
Certificate approving:
| intrinsic safety or ExdIICT6 and CE Certificate approving
|
EMC Standard:
| electromagnetic radiation:EN50081-1/-2
electromagnetic susceptibility:EN50082-2
|
Pressure connection:
| Various embedded structures suit to different applications 1/8, 1/4 or 1/2
|
Applications:
| a. Water tank level measurement and control.
b. Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
c. Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
d. Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
|
Remarks:
| Special applications request by customized
|
>>
