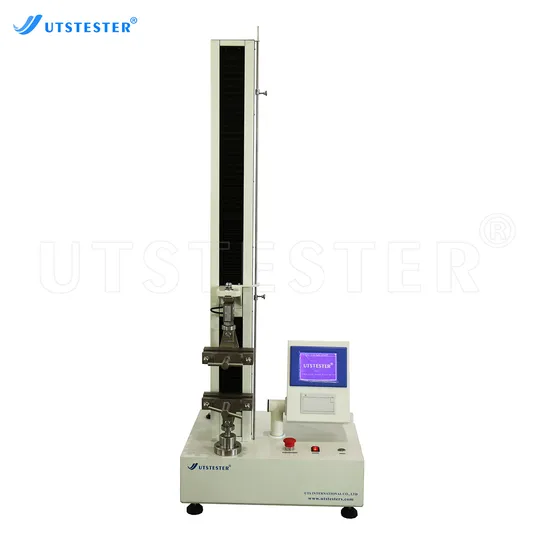

Universal Testing Machine Suppliers Tensile Strength Testing Machine

Product Description

Product Description
To determine the resistance to tensile rupture strength and rupture elongation property for cotton, fur, fiber, silk, wool fiber fabric, non-woven, paper, braid, etc.
Standard

GB/T 3923.1 determination of breaking strength and elongation at break (strip method) GB/T 3923.2 determination of fracture strength (scratch sample method) GB/T 3917.2 trouser specimen (single seam) -- determination of tear strength GB/T 19976 -- determination of bursting strength -- steel ball method ISO 13934.1 determination of breaking strength and elongation at break by strip method ISO 13934.2 determination of fracture strength by scratch method ISO 13935.1 determination of thread strength by spline method ISO 13935.2 determination of thread strength by scratch method ASTM D5035 standard test method for breaking strength and elongation at break (strip method) ASTM D2261 method for determination of tear strength of fabrics

Features 1. The main machine of the instrument is controlled by touch screen, and the operation is intuitive and simple, and the built-in printer is convenient to use.
2, ac servo drive, high-precision trapezoidal screw, can do a wide range of speed setting, suitable for testing the mechanical properties of various materials.
3. High-precision sensor with force measurement accuracy higher than 0.2%F·S.
4. Equipped with online interface, we are specialized in developing powerful testing software for materials, which can not only print and save test sample reports, but also provide test data for material analysis tests.
5, according to customer needs to provide a variety of standard test functions, can also be customized according to customer requirements.
6. No sensor replacement is required for stretching and bursting test.
7. With software copyright.
Product Parameters

Model	M002C
Max. Capacity	500N 2500N 5000N
Effective stroke	600mm
Test Method	CRE Principle (Constant Rate of Elongation), microcomputer control, liquid crystal Chinese display, support of online communication
Test force range	Full stroke 1% ~ 100%
Force Accuracy	≤+/-0.2% F· S
Stretch speed	0.1~500mm/min
Max elongation	600mm
Sample clamp mode	Manual clamp
Power Supply	AC 220V 50/60HZ 200W
Dimensions(WxDxH)	670 x 480 x 1440 mm
Weight	120kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
