Good Quality Construction Equipment Cbp25s Concrete Mixing Batch Plant Manufacture

Product Description

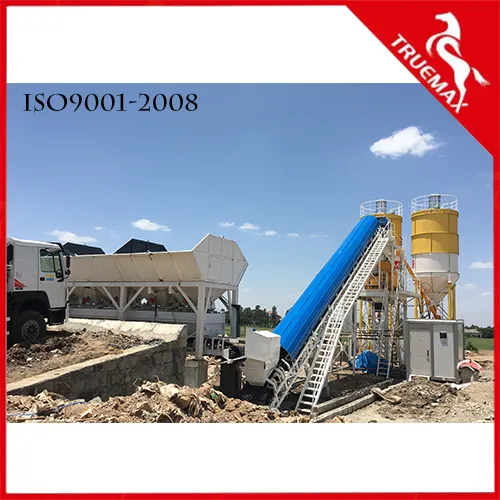

CBP25S Stantionary Concrete batching plant
General information
1. TRUEMAX domestic control system, accurate measurement, high efficient and reliable
2. The installation is convenient and rapid, simple operation
3. According to the requirements of different users to design the optimal construction scheme
4. Screw conveyor, cement silo are optional parts
Main technical specifications

Model	CBP25S
Productivity(m³/h)	25
Aggregate silo capacity (m³)	4*4 m³
Max. magnitude of aggregate scale(kg)	1600kg±2%
Mixer Type	JS500
Mixer Motor power (kw)	1*18.5kw
Mixer Discharging volume(L)	500
Mixer Max. aggregate size(mm)	≤60
Cement Weighing(kg)	350±1%
Water Weighing(kg)	200±1%
Additive Weighing(kg)	20±1%
Control System	ELETTRONDATA/TRUEMAX
Discharging Height(mm)	3800
Total power(Without silo and screw conveyor)(kw)	40

Features
1.High Stability
Heavy-duty steel frame desigh,overall stability, spacious space,easy maintenance.
2.High performance of mixing
Mixer adopts twin-shaft concrete mixer,meets the mixing of various concrete.
3.High quality of belt
High stability belt,rubber coating drum,nylon core belt enable long service life.Forward roller is effectivelty antidebiating. The head of belt conveyor is equipped with a gauge cover,effectively preventing the material spilled.
4.High class configuration,stable quality,accurate weighing.
The main electrical components of mixer,weighing sensor and control system adopt world weill-known brands,with stable quality and accurate weighing.
5.High degree of automation,easy operation
The whole machine is controlled by computer,either automatically or manually,simple,easy to opearate. It can also store and print the reported data,providing great converience for production scheduling management.
Packaging&Shipping
Job Sites
Company Information
TRUEMAX provided amd provides every day design,construstion and installation of mixer and batching plants for some of the most important construction projects around the world, the product range includes a wide variety of solution of concrete machinery:concrete batching plant,concrete truck mixer,concrete placing boom,concrete pump,concrete pump,concrete line pump,concrete truck-mounted pump.
Our Friends
FAQ
Q : Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.

Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9000, ISO14000, OHSAS18000, GOST, and ect.
And we have strict inspection before the goods shipped.

Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.

Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
