Siemens PLC Controlled Textile Sizing Equipment

Product Description

Product Description

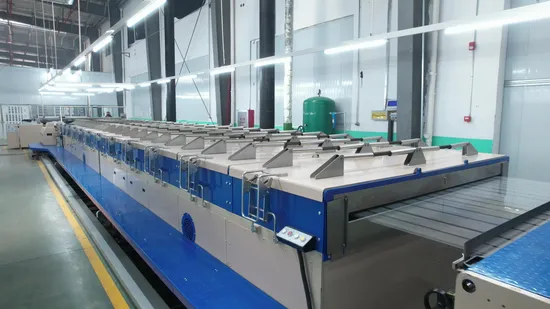

This state-of-the-art series of machines is meticulously engineered to handle an array of raw materials including various chemical fiber filaments, elastic fibers, and composite fibers. The equipment ensures these materials are evenly arranged, sized, dried, and shaped with unmatched precision before being seamlessly wound onto the pulp shaft. Boasting high-speed operations, a stable sizing rate, constant tension, and precise control, this equipment stands as the ultimate solution for sizing chemical fiber filaments. It is the quintessential preparation equipment for the beaming machine, promising optimal performance and efficiency.
Important parts
Winding Part
*Engineered with robust hard aluminum oxide rollers for durability.
*Integrated yarn sheet compression device ensures tension stability during shaft replacements.
*Fitted with a tape paper adhesive device for enhanced functionality.
*Features a pneumatic up/down shaft and clapper flip/flop system with air pressure sensor for safety assurance.
*Includes manual telescopic reed movement and electric reel expansion device, plus retractable reed swinging and yarn lifting devices.
*Equipped with state-of-the-art electrostatic eliminators.
Drying Part
*Utilizes a sophisticated two-stage reverse hot air circulation system and five drying cylinders.
*Independent temperature control systems for each drying cylinder and chamber.
*Incorporates a tension sensor control system for maintaining stable tension during operations.
*Post-drying filament oiling device with a steplessly adjustable oiling roller speed.
*Optional cooling system for dry yarn, customizable according to customer needs.
Sizing Part
*Advanced double frequency conversion motor drive system for adjustable yarn sheet tension.
*Pneumatic immersion grouting method with a specially designed roller for uniform grouting across the yarn sheet.
*Lifting and locking systems for grouting and soaking rollers, facilitating easy cleaning and long-term protection.
*Double-layer heat preservation slurry drum with a heating control circulation device.
*Optional automatic slurry spraying device.
*Newly designed slurry supply tank to effectively prevent splashing.
*Reed movement mechanism extending service life through up/down/left/right adjustments.
Condensation Part
*Six wet layered rods (condensation rods) to protect the slurry film.
*Optional water chiller for enhanced condensation effects.
*Layered reed frame lifting device included.
Hot Air Circulation Chamber
*Flexible drying modes: steam, natural gas, or thermal oil drying.
*Our advanced control system intelligently automates the regulation of steam, natural gas, or thermal oil volumes, meticulously maintaining the chamber's temperature for hot air circulation. This ensures a consistent and uniform drying process for all yarns.
*Utilizing a sophisticated hot air circulation heating method that operates counter to the yarn movement direction and an exceptionally efficient heat exchanger, powered by frequency conversion, our system significantly enhances drying efficiency.
Product Parameters
Top-of-the-Line Sizing Machine: Precision Engineering for Textile Excellence

Max speed		500m/min
Width		1800mm	2000mm	2200mm	2400mm	2800mm	3200mm
Unwinding Part	Power	7.5kw			11kw
	Warp Shaft diameter	ø800mm ø900mm ø1000mm
Number of sizing roots		2000 2200 2400 2600 3200 3600
Sizing method		The Compression Mode
Diameter of dipping roller		ø200mm
Sizing roller diameter		ø240mm

Squeeze roller diameter		ø220mm
Pulping method/Max. load		The Grouting Method for Uniform Pressure/Max.1500kg
Drying method		Steam/ Natural gas/ Heat transfer oil
Electric heating power(optional)		75kw			110kw
Drying room length		6m+6m
Drying cylinder diameter		ø800mm
Number of drying cylinders		5 or 7
Temperature regulating system		Automatic Temperture Control System

After oiling system		The Roller-sticker Oiling (Waxing) Method
Cooling system		Active Cooling System with Airflow Circulation
Winding tension control mode		AC Vector Tension Feedback Control Method
Winding tension control range		40N~750N
Pulp shaft loading and unloading system		Pneumatic device loading and unloading
Winding shaft diameter		ø800mm~ø1000mm
Display system		Touch-operated Displays
Electrical equippment capacity		80KVA(155KVA)			80KVA(190KVA)

Steam assembly		700kg/h			800kg/h
Steam volume		600kg/h			700kg/h

FAQ
Question: What products does your textile machinery equipment company offer?
Answer: At Suzhou Sifang Intelligent Technology Co., Ltd, we pride ourselves on offering a comprehensive suite of textile machinery and equipment. Our product range includes state-of-the-art warping machines, precision sizing machines, efficient beaming machines, and much more, designed to elevate your textile production processes.
Question: Can your company provide customized solutions for textile production lines?
Answer: Absolutely! Our team of seasoned engineers and skilled technicians is dedicated to crafting bespoke solutions for textile production lines. We tailor our equipment and processes to meet the unique requirements of each customer, ensuring optimal performance and efficiency.
Question: Do you offer installation and training services for your textile machinery equipment?
Answer: Yes, we do. We understand the importance of seamless integration and operation. Hence, we provide comprehensive installation and training services for all our textile machinery. This ensures that your team can operate the equipment proficiently and maximize productivity.
Question: What is the warranty for your textile machinery equipment?
Answer: Our textile machinery equipment comes with a standard warranty to safeguard your investment. Additionally, we offer extended warranty options for those seeking enhanced peace of mind and long-term reliability.
Question:Can I get technical support and spare parts for your textile machinery equipment?
Answer: Yes, we provide robust technical support and a full range of spare parts for all our textile machinery. Our dedicated support team ensures the uninterrupted operation of your production lines.
Question: How can I get a quote for your textile machinery equipment?
Answer: Obtaining a quote is simple. Contact our sales team with your specific requirements, and we will work closely with you to deliver the best solution at a competitive price, tailored to your production needs.
Question: Does your company have a global presence and can you provide international shipping?
Answer: Yes, Suzhou Sifang Intelligent Technology Co., Ltd has a strong global presence. We offer international shipping services to ensure that our advanced textile machinery reaches customers worldwide, irrespective of location.
Question: What is the lead time for delivery of your textile machinery equipment?
Answer: The lead time for delivery varies based on the specific products and quantities ordered. However, we are committed to ensuring timely delivery to align with your production schedules and minimize downtime.
Question: How can I learn more about your company and your textile machinery equipment?
Answer: To learn more about Suzhou Sifang Intelligent Technology Co., Ltd and our cutting-edge textile machinery, visit our website. For further inquiries or direct assistance, feel free to contact us. We are here to help you every step of the way.

---
