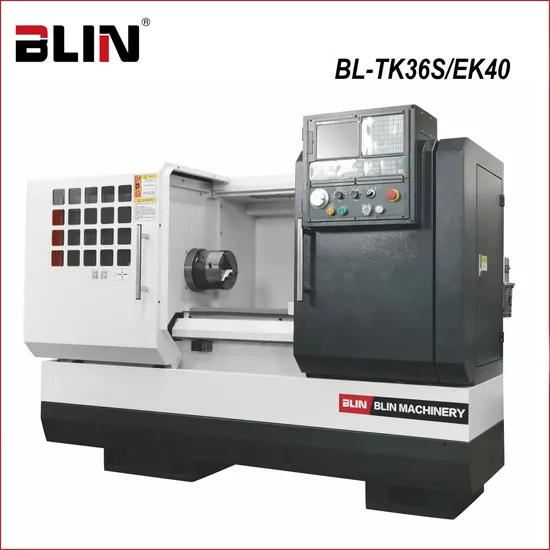

China Automatic Horizontal CNC Lathe Machine (BL-TK36S/EK40)

US$19,000.00-21,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BL-TK36S/EK40
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Guideway Width
316mm
Max. Swing Dia. Over Bed
360/400mm
Max. Swing Dia. Over Slide
180/200mm
Center Distance
750/1000mm
Spindle Bore
57mm
Spindle End Type
ISO702/I A2-6
Spindle Speed
140~3000(Stepless)
Spindle Motor
5.5kw
Spindle Chuck Size
8′′
Tool Turret Type
Vertical 4/Horizontal 6 Station
X Axes Travel
200/150mm
Z Axes Travel
610/550/510mm
X/Z Axes Rapid Speed
6/8m/Min
Positioning Accuracy(X/Z)
0.026/0.032mm
Repeat Positioning Accuracy(X/Z)
0.007/0.009mm
Transport Package
Plywood Case/Steel Pallet
Specification
mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
500 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description

China Automatic Horizontal CNC Lathe Machine (BL-TK36S/EK40)
- Adopt China best high strength compound resin sand cast iron
- Aging treatment,has good vibration absorption and rigidity
- Adopt independent spindle,3000rpm high speed, especially suitable for nonferrous metal processing
- Spindle unit adopt precise angle contact ball bearing and double column cylindrical roller bearings
- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Adopt independent coolant tank design
Item Specification Unit BL-TK36S BL-EK40
Capacity Guideway width mm 316
Max. swing dia. over bed mm Φ360 Φ400
Max. swing dia. over slide mm Φ180 Φ200
Max. turning dia. mm Φ320(vertical 4T tool turret);
Φ220(horizontal 6T tool turret)		 Φ400
Center distance
 mm 750/690/650
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)		 750/1000
Max turning length
mm 600/540/500
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)		 580/830
Max. workpiece weight kg 550(8'' manual chuck)
Spindle Spindle bore mm Φ57
Spindle head type / ISO702/ I A2-6(manual chuck, 8'' hydraulic chuck);
ISO702/ I A2-5(6'' hydraulic chuck)
Spindle speed rpm 140~3000(stepless)
Spindle motor kw 5.5(servo)
Chuck size / 8''
X/Z axes X axes travel mm 200/150
(vertical 4T/horizontal 6T tool turret)		 230
Z axes travel mm 610/550/510
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)		 590/840
X/Z axes rapid speed m/min 6/8
X,Z axes ball screw O.D./pitch mm Φ25/5,Φ40/6
Tool post Tool turret type / Vertical 4/Horizontal 6 station/gang tool
Tool shank size mm 20×20,Φ32
Tailstock Tailstock quill dia./travel mm Φ55/120(hydraulic tailstock: 100);
Φ75/150(hydraulic tailstock:130)		 Φ65/120
Tailstock quill taper / MT4#/MT5#(Φ75mm tailstock quill) MT4#
Accuracy X/Z axes positioning accuracy mm 0.026/0.032 0.026/0.032(750mm);
0.036(1000mm)
X/Z axes repeatability positioning accuracy mm 0.007/0.009 0.007/0.009(750mm);
0.011(1000mm)
Turning workpiece roundness mm 0.004
Others Total power KVA 12
N.W. kg 1700 1700(750)/2100(1000)
Overall size(L×W×H) mm 2150×1260×1600 2150×1260×1600(750mm)
2400×1260×1600(1000mm)

Main parts list:
Item Brand
Spindle bearing CHINA top-CSC/ZWZ
Ball screw bearing CHINA top-CSC
Ball screw CHINA top
Lubrication pump JAPAN-LUBE

Standard configuration: - FANUC 0i TF CNC Controller
- Manual chuck
- 4 station tool post
- Manual tailstock

Optional configuration: - SIEMENS 808D/GSK980TDi
- Hydraulic chuck
- 6 station tool turret
- Hydraulic tailstock
