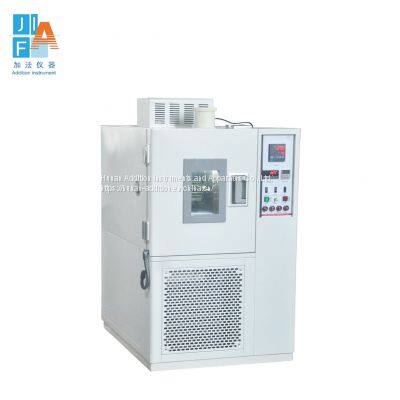

Automobile Low Temperature Driving Torque of Wheel Bearing Grease Tester ASTM D4693
Product model: JF0338
Product Description
The instrument uses a standard 204 bearing for testing. After static and constant temperature for 2 hours at the specified temperature, it rotates at the specified speed to measure its starting torque and running torque.
Technical Parameter
1. Applicable standard: ASTM D1478 SH/T0338
2. Refrigeration method: Danfoss dual compressor refrigeration
3. Temperature control range: normal temperature~-70℃
4. Time control: digital time timer
5. Speed control: 1r/min
6. Torque test: digital dynamometer
7. Torque accuracy: 0.1%
8. Working power supply: AC220,240V 50,60HZ
9. Machine power: 2000W
10. Instrument size: 800*500*1300mm
Main Feature
1. A standard D204 bearing consists of eight steel balls with a diameter of 7.9mm and a steel cage, with a radial clearance of 0.008～0.018mm
2. Microcomputer temperature controller, temperature control range from normal temperature to -70 ℃
3. PT100 temperature sensor, high acquisition accuracy ±0.1℃
4. Imported compressor cascade refrigeration, low noise.
5. The transmission motor adopts a high-speed ratio, 1740/1, which can maintain a stable speed.
6. The low temperature box is insulated with special materials, and there is no temperature influence on the outside.
7. Digital display of starting torque and running torque.
>>
