Sanyu Cut 100A Plasma Cutter Machine Cutter Cut/MMA Built-in Air Pump

Product Description

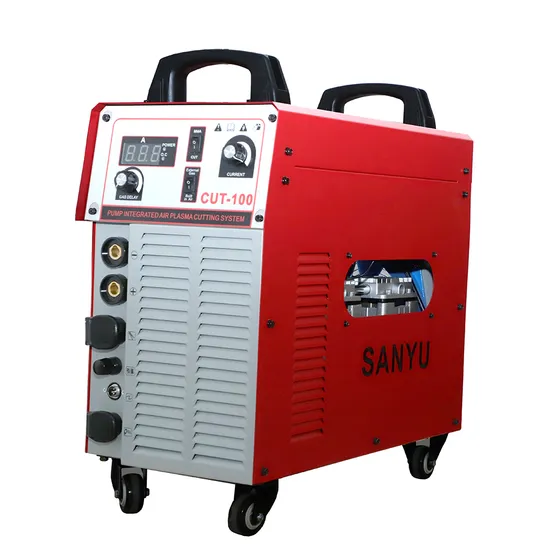

SANYU Plasma Cutting Machine Built-in Air Pump
Product Description
The CUT Series inverter cutting power supply utilizes high-power device IGBT to convert 50/60Hz power frequency to medium frequency
Frequency. Subsequently, reduce the voltage and adjust the current. Simultaneously using pulse width modulation (PWM) technology can generate a high power output . A large power supply that can be used for cutting.
Compared with traditional rectification and transformation technology, the advantages of inverter technology mainly lie in its obvious low energy consumption, lighter weight, and Smaller and more compact structure, with better performance. Built in air compressor plasma cutting machine, you can work anytime and anywhere.
Our company's series of plasma cutting power supplies can provide stronger, more concentrated, and more stable arcs. Almost all air in the arc is electrically charged The arc temperature can reach 10000-16000 ºC, reaching a highly ionized state and forming a strong plasma arc. This means that Plasma arc can be used to quickly cut metal and minimize the heat affected zone as much as possible, effectively utilizing energy By using it, an extremely smooth cutting surface can be obtained, which brings convenience for subsequent processing. Compared with other cutting power sources, our company's series of inverter plasma cutting power sources can provide fast electricity through advanced electronic circuits Source regulation and control, with first-class cutting operation characteristics and extremely high conversion efficiency.

Detailed Photos
Product Parameters

Model	CUT-40	CUT-60	CUT-80	CUT-100	CUT-120
Power Supply Voltage	230±10%	380±10%	380±10%	380±10%	380±10%
Rated Input Capacity	6	7.8	11	15	19
Frequency	50	50	50	50	50
Rated Input Current(CUT)	20	11	16	21.3	27.3
Rated Input Current(MMA)	0	10	11	13.3	15.5
Efficiency	85%	85%	85%	85%	85%
Cutting Current Range(CUT)	20-40	20-60	20-80	20-100	20-120
Welding Current Range(MMA)	\	30-200	30-220	30-250	30-280
Duty Cycle(40ºC 10min)	40%	40%	40%	60%	60%
No Load Voltage	250	280	280	310	310
Max Cutting Thickness	10mm	18mm	25mm	30mm	40mm
IP	IP21S	IP21S	IP21S	IP21S	IP21S
Insulation Class	B	B	B	B	B
Cooling Way	FAN&AIR	FAN&AIR	FAN&AIR	FAN&AIR	FAN&AIR
Dimension	440*280*290	465*280*510	540*280*580	585*315*650	585*315*650
Net Weight	20	35	49	62	62

Packaging & Shipping
1. Packing :
Carton Box or Wooden Box
2. Shipping : By sea , by air , by land , by express
Company Profile
Shanghai Sanyu Industry Co., Ltd is a professional welding machine and cutting machine manufacturer .
1. SANYU focus on the welding field for 20 years, familiar with the welding industry, provide pre-sales technical consultation, and welding solutions.
2.18 months warranty period, feedback within 24 hours, lifetime after-sales service.Spare parts will be provided free of charge for any problem during the warranty period
3. The product can be customized according to customer requirements, such as the functions, logo,color and so on.
4.CE,3C,ISO certification, strict testing and packing before shipping, to ensure product in good quality.
5.SANYU provide a variety of delivery methods for customers, such as sea, air, express and self-pick for customers to choose.

Other Products

1. MMA Series Welding Machine :
2.MIG Series Welding Machine :
3. TIG Series Welding Machine :
FAQ
Q1. Factory or trade company only? What certifications do you get?
A: We are factory absolutely. And we have CE, ISO9001, SGS, CCC.

Q2. Can I be your sale agent in our market?
A: Why not, welcome. Email me now if you are interested.

Q3. What is your MOQ?
A: The Minimum Order Quantity is 1 set.

Q4. What will your company do for the warranty?
A: All the goods are 100% quality testing before shipping. We'll offer 12 or 18 month warranty.During the warranty period,if goods have any quality problem without any human factors, we'll send parts for your repair and replace.

Q5. Can you accept OEM orders?
A: Yes, OEM/ODM orders are highly welcome.

Q6. what's the payment term?
A: We accept T/T, L/C, West Union, Cash, etc.
Usually, T/T 30% deposit and 70% balance before shipment or against copy of B/L. 100% for at sight LC.

Q7. What package standard?
A: For small capacity,we packed with carton,but for big capacity,we
can make the pallet or use strong wooden case to distinguish and protect the goods.

Q8. why choose us ?
A: 1. Famous brand in china for 10 more years ---- Sanyu
2. Easy operating system ---- Easy but effective software, gentle touch achieves
3. Stable performance ---- best famous compenents ensure the quality all the time
4. Excellent aftersales service ---- 24*7 hours online serive, never leave you alone.
5. Fast delivery ---- cheap & safe delivery, we look after it all the time

Q9. What is your production capacity?
A: 3000 sets per month, could provide customerlized package upon requests.

---
