Lab Mixer Lab Sigma Kneader Z Mixer

Product Description

Introduction:
Welcome to Shindah, your professional and reliable supplier of Kneading Machinery since 2003.

sigma mixer/Z blades mixer/kneading machine/sigma kneader with double Z/Sigma Blades, is to be used for mixing and kneading of low-to high-viscosity products in many industries such as BMC/DMC, Chewing gum, candy/sugar paste, plasticize/silly putty, Hot melt adhesive , silicon compound, CMC/Cellulose, Electrode paste, carbon, pencil leads, soap, pigments, inks, plastic ect.

Machine structure:
Including kneading/mixing system, machine base, hydraulic system, transmission system, electric control system, heating system (optional), cooling system (optional), vacuum system (optional)

---- Discharge: Tilting discharging
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
for lab machine, discharging can be manual.
---- Heating: electric heating, hot water heating, hot oil heating, steam heating
--- Cooling: Z blades water cooling, mixing chamber with jacket for cooling purpose.
---- Vacuum system: water-ring vacuum pump and buffer tank.

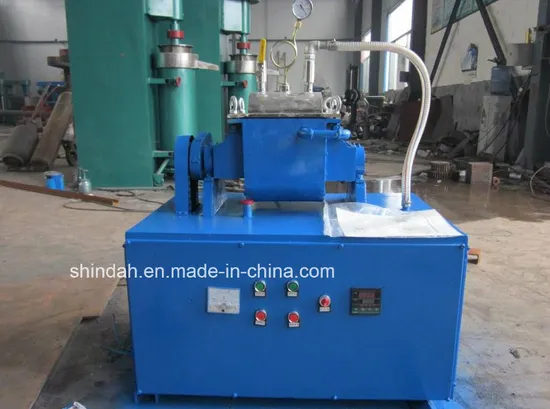

we also supply lab mixers.
below is 2000L machine drawing:
Parameters:

Model(L)	NH-1	NH-2		NH-5		NH-10		NH-50		NH-100	NH-200	NH-300	NH-500	NH-1000	NH-1500	NH-2000	NH-3000	NH-4000	NH-5000		NH-6000
volume(L)	1	2		5		10		50		100	200	300	500	1000	1500	2000	3000	4000	5000		6000
Steam pressure(Mpa)	0.3	0.34		0.34		0.34		0.34		0.34	0.34	0.34	0.34	0.34	0.34	0.34	0.34	0.34	0.34		0.34
Hot oil circulation(Mpa)	0.5	0.5		0.5		0.5		0.5		0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5		0.5
Electric heating(Kw)	0.5	1		1.5		2		3-6		4-11	6-15	6-18	12-24	18-36	32-45	/	/	/	/		/
Fast Rpm	45	42		60		45		35		36	36	40	30	35	40	35	32	30	35		35
Slow rpm	Speed ratio 1.0-1.9 as option, according to materials features.
Main motor (Kw)	0.37-1.1		0.55-1.5		0.75-2.2		1.5-3		3-5.5	4-11	5.5-15	5.5-18	11-45	18.5-75	22-90	45-160	55-190	75-250	90-225	90-225
Vacuum											≤-0.094Mpa
Discharge	1.manual (for small capacity) 2.bottom ball valve 3.electric tilting 4.screw extruding

any interest, welcome to send your inquires!
mobile: 86-18561609810

---
