Product Details
Product Description
Product Description

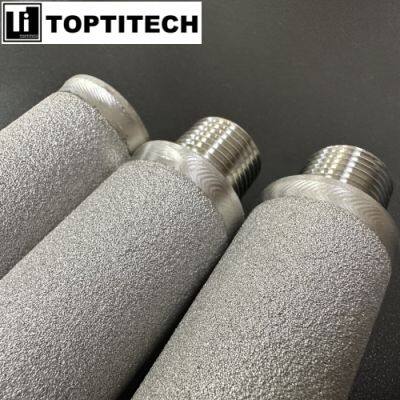

TOPTITECH's 30" SUS 316L Sintered Alloy Porous Filter Elements are crafted from premium SUS 316L stainless steel alloy, ensuring durability and reliability in demanding environments. The sintered alloy construction provides excellent resistance to heat, corrosion, and physical wear, making them ideal for challenging filtration applications.
The linked pores in the porous structure of the 30" SUS 316L Sintered Alloy Porous Filter Elements facilitate the effective removal of pollutants. The large surface area facilitates optimal particle capture, ensuring high filtration efficiency while minimizing pressure drop. With customizable configurations available, TOPTITECH can tailor the pore size, thickness, and shape to meet specific filtration needs.
Parameter
Material: SUS 316L
Length: 30”
Diameter: 30mm
Pore size: 15 um
Wall thickness: 2.5mm
Connector: 1/2” NPT
Features
Exceptional Durability: Our 30" SUS 316L Sintered Alloy Porous Filter Elements are constructed using high-quality SUS 316L stainless steel, ensuring unmatched strength and stability. These filter elements are designed to withstand demanding environments, offering long-lasting performance and reliability.
High Filtration Efficiency: With a porous structure and interconnected pores, these filter elements provide efficient contaminant removal. The large surface area facilitates optimal particle capture, resulting in high filtration efficiency while minimizing pressure drop. This ensures effective filtration and maintains the overall efficiency of industrial processes.
Robust Heat and Corrosion Resistance: The sintered alloy material of these filter elements provides excellent resistance to heat and corrosion. They can operate reliably in high-temperature environments and withstand the corrosive effects of chemicals, ensuring prolonged service life and consistent filtration performance.
Customizable Configurations: We offer customizable configurations for our filter elements, allowing for adjustments in pore size, thickness, and shape to meet specific filtration requirements. This customization ensures that the filter elements are tailored to the unique needs of each application, optimizing filtration performance and achieving desired results.
Wide Range of Applications: The 30" SUS 316L Sintered Alloy Porous Filter Elements find extensive use across various industrial sectors. Whether in petrochemical, pharmaceutical, food and beverage, or water treatment applications, these filter elements deliver reliable filtration solutions. Their robust construction and superior filtration performance make them a trusted choice for critical filtration tasks, ensuring clean and purified fluids while maintaining process efficiency.
What is 1/2” NPT connector?
The 1/2” NPT interface refers to a common standard for pipe threads used in connecting fittings and components. NPT stands for National Pipe Taper, which is a widely adopted thread standard in the United States. In this product, 1/2” NPT indicates that the thread size of the interface is 1/2 inch.
NPT interfaces feature a tapered thread design, where the threads gradually narrow toward the end of the pipe, creating a cone shape. This design ensures a secure connection that helps prevent oil or gas leakage effectively.
The 1/2” NPT interface finds extensive applications in various industries, including fluid and gas transfer systems, pipe connections, valves, instruments, and other equipment involving pipe connections. It is widely embraced in industrial settings due to its ease of installation, high reliability, and ability to withstand high-pressure and temperature environments.
It is important to note that NPT interfaces are tapered thread standards and are not compatible with parallel threads (such as NPS). Therefore, when selecting and connecting fittings, it is crucial to ensure the use of the same type of thread to achieve tight and reliable connections.
>>
