Bl-V7 Metal-Cutting Tools Blin China Machining Fanuc CNC Milling Machine with Cheap Price

Product Description

-Suitable for medium-sized cutting
-3 axes adopt high precision linear guideway
-Designed by GERMAN engineer
-Whole production process accord to TAIWANESE standard
-Chips outlet set at back of machine
-Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
-High speed, high precision, long using lifespan
-Adopt HT300 high class cast iron,after aging treatment and FEA analysis
-Bridge shape column, high rigidity, high stability
-3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:

Item	Specification	Unit	BL-V7
Worktable	Table size	mm	900×400
	Table max. loading	kg	300
	T slot(NO./width/gap)	mm	3/14/100
Travel	X/Y/Z axes	mm	720/450/470
Spindle	Distance from spindle nose to table surface	mm	120~590
	Distance from spindle center to column surface	mm	440
	Spindle type	mm	BT40/Φ120
	Spindle motor	kw	5.5
	Spindle speed	rpm	8000(option:10000 belt-drive/12000 direct-drive)
Feeding axes	Cutting feed speed	m/min	10
	X/Y/Z axes rapid moving speed	m/min	36/36/30
	X/Y/Z axes feeding motor	Nm	6/6/11(SIEMENS 808D ADVANCED)
	X/Y/Z axes ball screw dia./pitch	mm	32/16
	X/Y/Z axes linear guideway width	mm	30/30/30
Precision	Positioning precision	mm	±0.005
	Repeatable positioning precision	mm	±0.003
Tool magazine	Tool magazine type	/	Arm type 16T
	Max. tool weight	kg	8
	Max. tool length	mm	200
	Max. tool dia.(fully loaded)	mm	Φ80
	Max. tool dia.(no adjacent tool)	mm	Φ150
	Tool changing time	/	Tool to tool: 1.8s
Others	Overall dimension(L×W×H)	mm	2220×2000×2160
	Weight	kg	3200

Main parts brand:

Item	Brand
Spindle bearing	JAPAN-NSK
Ball screw bearing	TAIWAN-TPI
Ball screw	JAPAN-THK/TAIWAN-HIWIN
Linear guideway	JAPAN-THK/TAIWAN-HIWIN
Spindle unit	TAIWAN-VYU CHENG

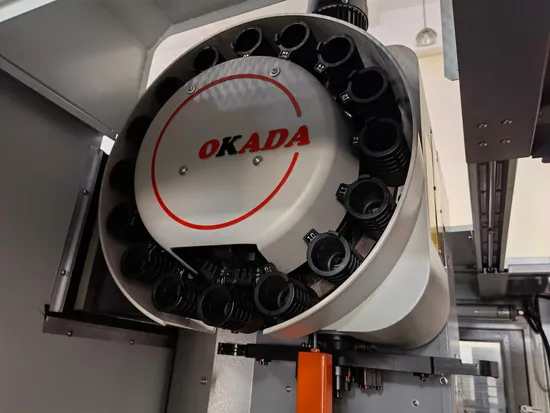

Tool magazine	TAIWAN-OKADA
Booster cylinder	TAIWAN-HAOCHENG
Pneumatic parts	TAIWAN-AIRTAC
Electric parts	FRANCE
Lubrication pump	TAIWAN-BEISUN

Standard Configuration: -SIEMENS 808D ADVANCED CNC Controller
-16T ARM type tool magazine
Optional configuration: -SIEMENS 828D/FANUC 0I MF CNC Controller
-12T Umbrella type tool magazine
-4th axes
-Tool setting probe
-CTS(coolant through spindle)

Other models choice:
All our machines range:
About us:

---
