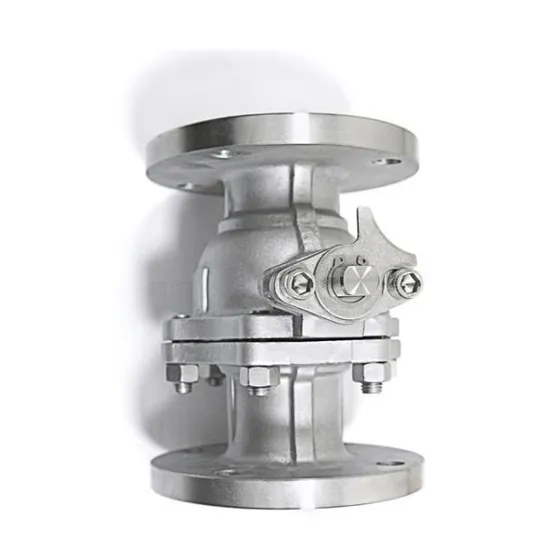

Q41f-16 3 Inch 6 Inch GB Standard Manual High Pressure Normal Temperature Customizable Stainless Steel Body PTFE Soft Seal Flange Float Industry Ball Valves

Product Description

Product Description

NO	Main parts	Materials
1	Valve body	WCB
2	Ball	Stainless steel
3	Stem	Stainless steel
4	Seal ring	F4, Stainless steel

Function and specification
Type	Normal pressure (Mpa)	Test pressure (Mpa)		Suitable tempetature	Suitable medium
		Strenght(water)	Enclose (water)
Q41F/H-16C	1.6	2.4	1.8	≤200ºC	Water, vapour, oil
Q41F/H-25C	2.5	3.8	2.8
Q41F/H-40C	4.0	6.15	4.51
Q41F/H-64C	6.4	9.75	7.15

Outline and measurement
Type	DN(mm)	Measurement(mm)			Weight(kgs)
		L	D1	H
Q41F/H-16C	15	130	65	98.5	3.1
	20	130	75	110	3.7
	25	140	85	117	4.5
	32	165	100	130	6.4
	40	180	110	128	8.2
	50	203	125	136	10.9
	65	222	145	157	16.23
	80	241	160	190	21.75
	100	305	180	231	30.4
	125	356	210	278	46.5
	150	394	240	301	63.5
	200	457	295	336	110.5

Technical specifications for main part
*Valve name	PN16 WCB Flanged DN25-DN250 Ball Valve
*Nominal diameter	DN 15~250mm
*Nominal pressure	PN 10,PN16,PN25,PN40,PN63
*Working temperature	-29~425ºC
*Suitable medium	Water,Vapor,Oil
*Standard	GB standard

Material For Main Parts
Name of Parts	Material
*Body	WCB/CF8
*Disc	WCB/CF8
*Stem	2Cr13
*Bonnet	WCB/CF8
*Yoke nut	Ductile iron/Brass
