| US$2,300.00-3,200.00 | 1 Piece (MOQ) |

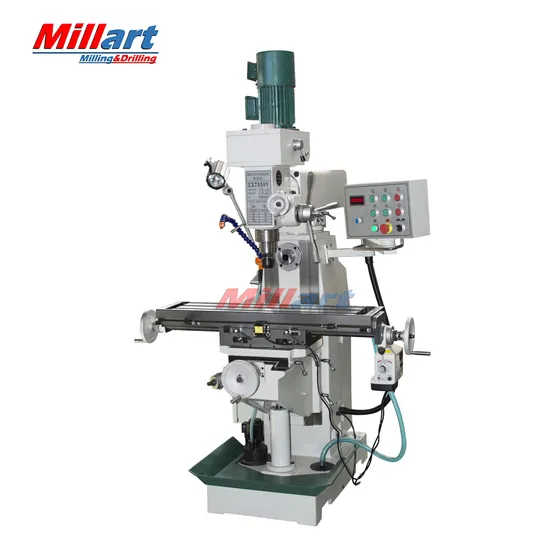

| Model | ZX7550V |
| Max.drilling dia (mm) | 50 |
| Max.horizontal milling dia (mm) | 100 |
| Max.vertical milling dia (mm) | 25 |
| Max.boring dia (mm) | 120 |
| Max.tapping dia | M16 |
| Distance.spindle to table surface (mm) | 50-350 |
| Spindle speeds range (r.p.m) | Low speed 140-1050 (V) High speed 280-2100 (V) |
| 60-1350(H) | |
| Spindle travel | 120 |
| Table size (mm) | 1000×240 |
| Table travel (mm) | 600×210x300 |
| Overall dimensions (mm) | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5(V) 2.2(H) |
| N.W/G.W (Kg) | 850/1000 |
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X axis auto power feed |
| Collet chuck kits |
| Mill arbors |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
| Y axis power feed motor |
| Z axis power feed motor |
| 3 axis DRO |
| Air draw bar |
| Separately control panel box |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Worktable swivel ±45 degree |
| Rotary table HV10 |
| Dividing head BS-0 |
| Machine vice 160mm |
