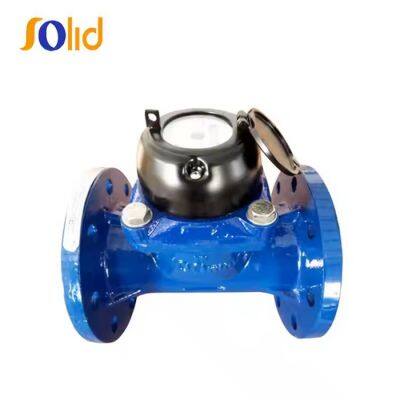

ISO 4064 Class B Agriculture Irrigation Cast iron Woltmann Removable Dry Type Bulk Water Meter

Product Description

Product Description
APPLICATION:
To totalize the total volume of cold water flowing through the watermain pipeline.
It is suitable for industrial use.
FEATURE
Measuring mechanism can be removable from the body,easy for instalation and maintenance
Equal parts for measuring mechanisms,reduced storage of spare parts.
Suitable for any kind of water also if very hard or dirty,defending stoppage.
accuracy,big capacity,negligible head lose and long life of service time.
Upon request,the water meter could be equipped with a kind of remote transmission device.
MAIN TECHNICAL DATA

Size	Class	Max Flow	NorminalFlow	Transitional Flow	Min Flow	Min Reading	Max Reading
mm		m3/h
50	A	30	15	4.5	1.2	0.01	999999
65	A	50	25	7.5	2	0.01	999999
80	A	80	40	12	3.2	0.01	999999
100	A	120	60	18	4.8	0.01	999999
125	A	200	100	30	8	0.01	999999
150	A	300	150	45	12	0.01	999999
200	A	500	250	75	20	0.01	999999
250	A	800	400	120	32	0.1	999999
300	A	1200	600	180	48	0.1	999999

---
