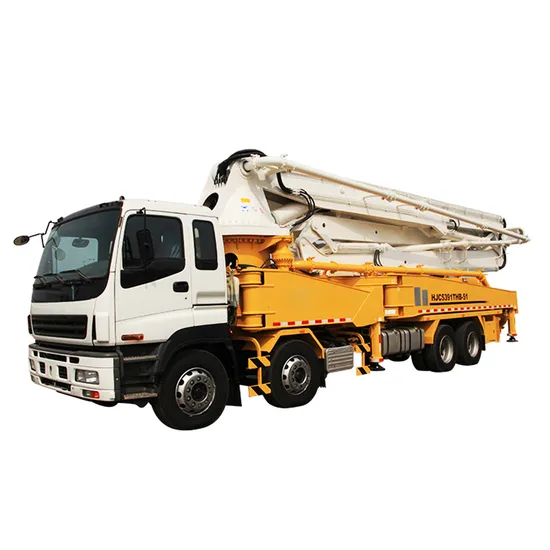

China Top Brand Hjc5420thb-51 Truck Concrete Pump Truck

Product Description

China Top Brand Hjc5420thb-51 Truck Concrete Pump Truck

Product Description
1. High-performance chassis, reliable quality, more than 20% lower fuel consumption than other brands, more suitable for rural China; chassis with digital LCD instrument.
2. Equipped with a pumping system with large diameter (Φ230mm) and large displacement (108 square meters/hour). The suction performance can reach more than 85%, effectively reducing the number of reversals with the same displacement, and the wearing parts have a longer life. The pumping system uses electricity. Control the reversing, change the pump faster, the system impact is smaller, and the actual pumping efficiency is more than 5% higher than that of the conventional hydraulic control reversing system.
3. Using cast integrated manifold, the internal flow path is optimized, the pressure loss is smaller, and the energy saving is 10% compared with the traditional valve block.
Product Parameters

Model			Unit	HJC5420THB-51	HJC5421THB-51
Vehicle specification	Length × width × height		mm	13810×2500×4000	13850X2500X4000
	Gross weight of machine		Kg	43000	42400
Boom parameters	Folding type			5-section RZ-shaped
	Rotation angle for boom sections		°	90/180/80/250/180
	Vertical height of boom		m	49/50.8
	Horizontal length of boom		m	45/46.8
	Vertical height of boom		m	34/36
	Minimum unfolding height of boom		m	10.3
	Rotation angle of turntable			±360°
Outrigger parameters	Extending/retracting mode of outriggers			X-shaped outriggers
	Maximum extending span of front outriggers		m	9.51
	Maximum extending span of rear outriggers		m	12.8
Pumping system parameters	Theoretical concrete displacement	High pressure	m3/h	120
		Low pressure	m3/h	170
	Theoretical pumping pressure	High pressure	Mpa	12
		Low pressure	Mpa	8.3
	Bore diameter of delivery cylinder		mm	260
	Travel of delivery cylinder		mm	2200
	Hopper capacity		L	800
	System oil pressure		Mpa	32
Other	Remote controller			German HBC
	Cooling mode of hydraulic oil			Air cooling
Chassis	Chassis model			ACTROS4141/8×4	CYH52Y
	Engine power			300kw/1800rpm	294kw/1800rpm
	Emission standard			EURO IV
