Corner Rounding Edge Banding Machine Edge Trimming

Product Description

Product Description

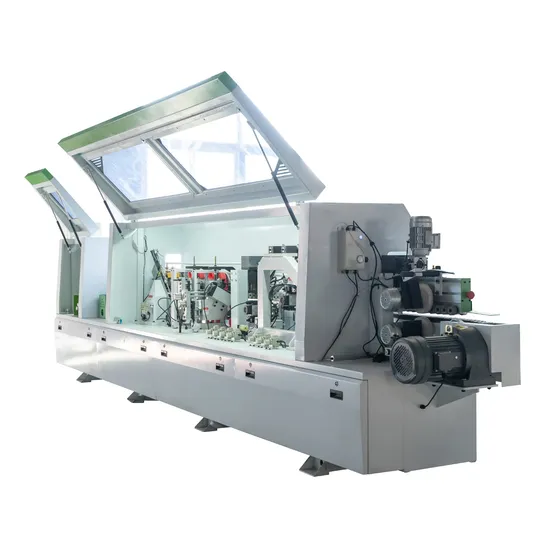

Woodworking full automatic mdf melamine veneer Wood Furniture Machine pre milling Corner Rounding/Straight Edge Banding Machine.

Automatic edge banding machine advantages:
Adopt imported motor and high quality electrical component.
High precision and work efficiency.
Automatic and precise gluing procedure as well as integrated double finish.
Glue evenly, conveying stability.
All the working area and specifications can be customized according to your requests.
Product Parameters
China manufacturers edge bander machine wood board mdf melamine woodworking pur fully automatic pvc edge banding machine price.
This machine is mainly used for straight edge structures of plywood, fiberboard and V-section particleboard. It has compact structure, reasonable layout, beautiful appearance, adopts sound insulation, dust collecting port, anti-overload device, and has edge sealing, up and down fine adjustment, and surface polishing working devices. Furniture factory welcome.

Model	GD2400	Glue Motor Power	0.37kw
Edge Thickness	0.4-3mm	Refinement Motor Power	0.75kw*2
Edge Width	0-50mm	Polishing Motor Power	0.18kw*2
Plate Width	≥80mm	Feeding Speed	13m/min
Plate Length	≥120mm	Air Pressure	0.7Mpa
Heating Power	0.75kw	Equipment Size	4500*900*1500mm
Feeding Motor Power	0.75kw	Gross Weight	2200kg

Automatic PVC MDF Edge Bander Wooden Furniture CNC Machine CE Certificate Pre Milling Corner Rounding Edge Banding Machine.
Pur edge banding machine glue pot automatic pre-milling profiling tracking panel furniture cabinet woodworking machinery and equipment.

Pre-milling,Preheating, Pressing, Gluing, End Cutting, Rough Trimming, Fine Trimming, Corner Rounding,Edge Scraping, Polishing.

<Pressing and Glue>. The steel pressing wheel will press the edge band and the plate tightly to make the adhesion more firm, and there is no glue mark on the plate surface..

<End Cutting>. It is composed of front end trimming and back end trimming. It has a unique protection function of end trimming and plate bumping the stability....

<Fine and Rough Trimming>. The roughing tool is a 15 °allowance for finishing. The automatic tracking by film and high-frequency high-speed motor are used to realize fast cutting.. The finishing knife is R2 finishing knife.The automatic tracking by film and high-frequency high-speed motor are used to realize fast cutting..

<Scraping>. It is used to eliminate the ripple marks caused by the cutting process of the non-linear motion of the trimming, and make the upper and lower parts of the plate smoother and cleaner...

<Polishing>. Use cotton polishing wheel to clean the processed plate, remove the redundant glue stains, and make the end face of edge sealing more smooth and clean by polishing...

Can Choose !!!

<Pre-milling>. Double milling cutters are used to re-modify the ripple marks, burrs or non-perpendicular phenomena caused by the cutting board sawing ..

<Corner Rounding>. The upper and lower rounding device can make the end face of the plate more smooth and beautiful...

Application
The automatic linear edge banding machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc..
1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty: Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3.Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trade manager, Skype,
Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine
arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEM If you have other needs, please let me know.....

---
