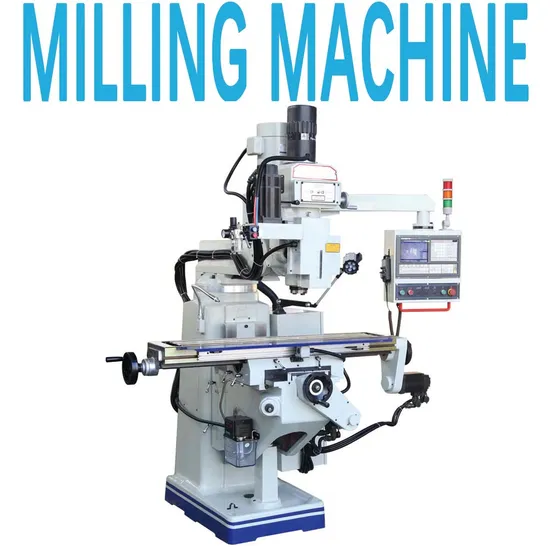

Xk Series Knee Type CNC Milling Machine

US$3,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XK
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case
Specification
big
Trademark
OEM
Origin
China
Production Capacity
10000sets/Year

Product Description


SPECIFICATION UNIT MODEL
XK6323B XK6325 XK6325C XK6325D XK6330 XK6330A
Table Size mm 230x1067 254x1270 305x1370
230x1246 254x1370 305x1500
T Slot 3x16
Table Loading kg 200 280 350
X Axis (Table Longitudinal move) Travel mm 550 750 800
740 850 900
Y Axis (Table Cross Move) Travel mm 300 400 360
Z Axis (Quill Move) Travel mm 103
X/Y/Z Axis Rapid Feed mm/min 5000
X/Y/Z Axis Servo Motor kw 1
Knee Vertical Travel mm 350 400 380
Ram Travel mm 315 470 500
Distance From Spindle to Table mm 0-350 0-400 0-380
Milling Head Spindle Speed Standard: 16 Steps rpm 50hz:66-4540 / 60hz:80-5440
Optional: Variable 60-4200 60-3600
Spindle Taper Standard: R8 / Optional: ISO40 ISO40
Motor Power HP 3HP 5HP
Head Rotating Swiveling ±90°
Tilting ±45° - ±45° -
CNC GSK
Package Size mm 1650x1900x2000 1900x2000x2230 2000x2000x2250
Gross Weight kg 1100 1400 1600 1800
