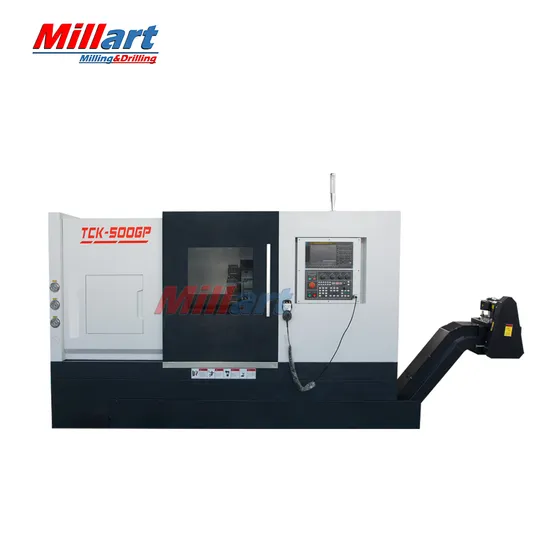

Tck550gp CNC Slant Bed Turning Lathe Machine Tilt Angle 45 Degree

US$22,000.00-27,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

TCK550GP

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools

Movement Method

Linear Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance Classification

High-End CNC Machine Tools

Certification

CE, RoHS, ISO 9001

Condition

New

Max. Swing Over Bed Diameter

580mm

Max. Turning Length

1000mm

Spindle Bore

87mm

Max. Spindle Speed

2600rpm

Main Motor Power

11/15kw

Tailstock Diameter

Mt5

Transport Package

Steel Pallet

Specification

CE ISO9001 RoHS

Trademark

L&T

Origin

Tengzhou China

HS Code

8458110090

Production Capacity

50 PCS/Month

Product Description

TCK550GP CNC Slant Bed Turning Lathe Machine Tilt Angle 45 Degree

Specifications:

Specifications	TCK550GP
Max.swing over bed (mm)	Φ580
Max.turning diameter (mm)	Φ560
Max.swing over cross slide (mm)	Φ360
Max.turning length (mm)	1000
Spindle nose	A2-8
Chuck size	10"
Spindle motor power (kw)	11-15
Max.spindle speed (rpm)	2600
Spindle bore (mm)	Φ87
Max turning Dia Bar (mm)	Φ72
X/Z axis leadscrew (mm)	40/50
X axis limit Travel (mm)	350
Z axis limit Travel (mm)	1120
X/Z axis motor torque (N/m)	21/21
X/Z axis linear guideway (mm)	55/55
X/Z axis accuracy (mm)	0.008
X/Z axis repeat accuracy (mm)	0.005
Tailstock quill diameter (mm)	Φ100
Tailstock quill travel (mm)	120
Tailstock travel (mm)	1250
Tailstock taper	MT5
Machine dimension (mm)	3170x1180 x1700
Weight (kg)	4800

Standard accessories:
Fanuc 0i TF Control system
6'' Hollow hydraulic chuck
12 stations hydraulic servo turret
Hydraulic tailstock
X,Z axis Linear guide way
Chain type chip conveyor
Schneider electrical components
MPG
Cutting Cooling system
Work lamp
Central auto-lubricating system
Heat exchanger in cabinet
Tri-color warning lamp
Full closed cover
Tools and tool box
Levelling bolts and blocks
Optional accessories:
12 stations BMT power turret from Taiwan
Power head + Radial power head
Hydraulic steady rest
C axis
