| US$3,260.00-5,970.00 | 1 Piece (MOQ) |
| Project | Content | Summary of Advantages |
| Resolving power | 3840×2160×2 | Camera: 1. Equipped with both fluorescent and color CMOS sensors; 2. The maximum resolution of a single sensor is 8.3 million pixels; 3. The maximum frame rate at full resolution is 60fps; 4. High sensitivity and low noise; FPGA: 1. Unique whole board CCU design 2. Supports up to 8 channels of 4K video output simultaneously; 3. Support multiple image mode outputs; 4. Support customization of multiple department parameters; 5. Support multiple external device connections (such as burners, etc.); Camera controller: 1. Supports IPX7 waterproof and detachable; 2. Small size and light weight; 3. Low temperature design |
| play | Video playback | |
| Transport packaging | Carton or aviation aluminum box | |

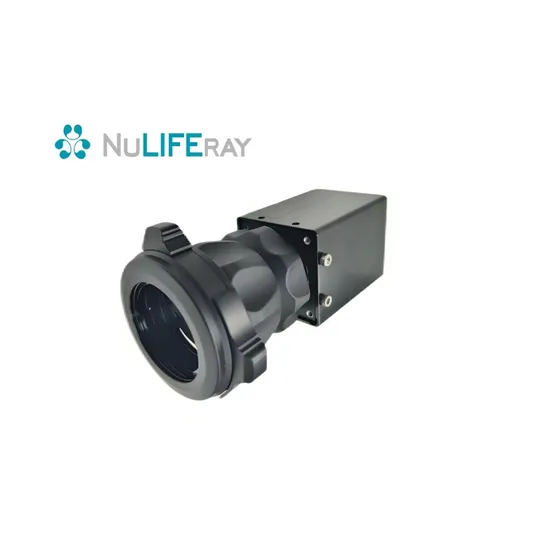

| Specifications | Camera size: 34mm × 29mm × 63.98mm; Camera weight: 73.1g; FPGA size: 29.3cm × 22.7cm × 1.8cm | |
| Brand | Nuoyuan Medical | |
| Place of Origin | Nanjing | |
| Applicable scenarios | As a key component of fluorescence imaging systems, it is used in combination with endoscopes and laser light sources, Provide real-time visible light and fluorescence imaging in minimally invasive surgery | |
| Color temperature | 3000~7000K | |
| Sensor | 2 CMOS sensors | |
| Frame rate | 60fps | |
| Pixel | 3840×2160×2 | |
| Signal to noise ratio | >40dB | |
| Delay | <20ms | |
| Output port | Camera: CXP; FPGA: HDMI x 4, SDI x 4, optical port x 1, DP x 1 | |
| Foot pedal | have | |
| Video and image playback | support | |
| Image contrast | Adjustable | |
| Storage device | Can be paired with a 4K burner | |
| Language | Chinese/English | |
| Custom button | yes | |
