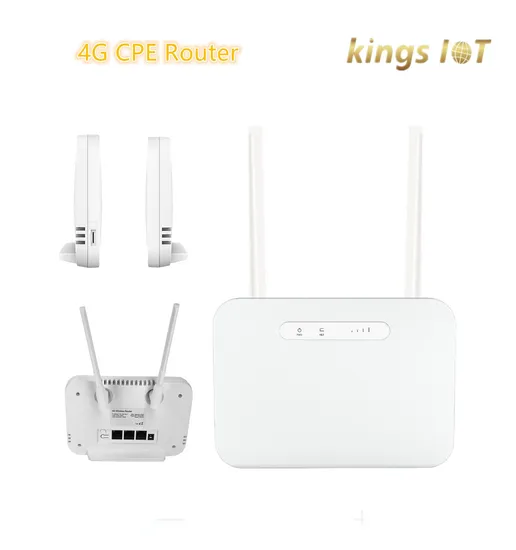

CAT6 4G Router, 11AC Dual Band 1200Mbps Wireless Router with SIM Card Slot and Battery

Product Description

Cat6 4G router, 11ac dual band 1200Mbps wireless router with SIM card slot and battery
Product Description KS-LTE517-Cat6 is an high speed, high performance, multiple functions LTE CPE in Cat6 standard. Comply with IEEE 802.11ac wireless standard, the wireless speed up to 1200Mbps in 2.4GHz and 5.8GHz. Support 4G FDD/TDD, WCDMA and GSM networking, plug and play, easy to have the high speed wireless network for 32+ end users. Support VPN, optional battery, it is best choice for ISP, home and some chain stores.
Main Features:
Support 4G/WCDMA/GSM network, plug and play, easy to install; 2.4GHz+5.8GHz, the wireless speed up to 1200Mbps, 32+ end users can access into it; Support DC power, 2600mAh or 5200mAh battery optional, movable wireless router make network available everywhere; Support VPN, more functions for more application scenes; Optional to support dual SIM: eSIM+SIM Provide deeply firmware support, help customer to develop their own firmware;

Product Parameters

Hardware Spec:
Model	KS-LTE517-Cat6
WiFi Standard	IEEE 802.11b/g/n/ac
CPU	MT7628+MT7613
Flash	8MB
Memory	64MB
Frequency	2.4G: 2400 - 2484MHz 5.8G: 5180~5825MHz
Data Rate	300Mbps @ 2.4GHz 900Mbps @ 5.8GHz
RF Power	2.4G≤20 dBm/chain 5.8G≤20 dBm/chain
Access Users	32+ Clients
Interface	1*10/100Mbps RJ45 port, WAN/LAN port
	2*10/100Mbps RJ45 ports, LAN ports
	1*SIM card slot for 3G/4G SIM card
	1*Power button to switch on/off power
	1*Reset button/WPS button
	1*DC power injector, 12V/1A power adapter
LED Indicator	Power
	ETH
	4G Signal strength (S1~S4)
Wi-Fi Antenna	Build in 5dBi MIMO Antenna
4G Antenna	Inner 4G antenna, 5dBi; Optional External detachable antenna
Power Consumption	<12W
DC Power Supply	Input 12V / 1A (DC);
Battery	2600mAh or 5200mAh(Optional)
MTBF	≥52000H@25ºC
Working temperature	Working Temperature:-20ºC~45ºC
	Storage temperature: -40ºC~70ºC
Humidity	5%~95%
Dimensions	178*125*33mm
Firmware Features
Operation mode	WAN/4G (WAN only, 4G only, WAN fist, 4G backup)
APN	Support auto APN and manual APN
Wireless Functions	Support guest SSID, SSID hidden
	Support firewall such as MAC filter, IP filter
	Support scheduled Wi-Fi on/off
VPN	Open VPN and VPN Client (L2TP PPTP)
Security	Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP
IP Protocol	IPv4
Device Management	GUI web management
	Support firmware back-up, restore, reset, upgrade
Packing List	KS-LTE517*1 Power Adapter*1 LAN Cable×1(1 meter) User Manual×1

4G Data Rate
4G protocol	Cat6
3G/4G bands for Europe/Middle East	B1/B3/B5/B7/B8/B20/B28@FDD; B38/B40/B41@TDD, 2xCA: B1+B1/B3/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B38+B38, B40+B40; B41+B41; B1/B5/B8@WCDMA;
LTE-FDD Speed	Downlink: 300Mbps, Uplink: 50Mbps
LTE-TDD Speed	Downlink: 220Mbps, Uplink: 30Mbps
UMTS:	HSDPA: Downlink: 21Mbps, HSUPA: Uplink: 5.76Mbps; WCDMA: max. 384kbps in downlink and uplink;

Detailed Photos
Packaging & Shipping
Carton box: 41*25*39cm; 20PCS/CTN
After Sales Service Two years warranty
FAQ Q1. 4G bands:
A: Can customize the bands if not supportQ2. OEM & ODM service
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package;
Content will be limited by MOQ;
ODM: we can provide PCBA, housing and firmware ODM service:
PCBA: 2~3 month to finish it;
Housing: 2 month after finish the PCBA;
Firmware: we can provide the open source driver for customer to develop their firmware;
We can provide DTS files if want;
And we can provide technical support in customer firmware development.
Q3. If support out of China production:
A. Yes, this is developed by our engineers, we can support SKD and CKD;
We can provide the SOP of assemble and finished product testing;
But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem;
We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.

---
