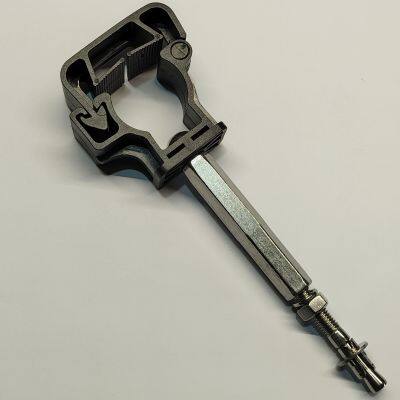

Double self-locking clamp for 1-1/4“radiating cable
PRODUCT DESCRIPTION
1. It is used for the installation of highway, low-speed railway tunnel and indoor signal coverage Radiating Coaxial Cable. It has the advantages of simple, safe and efficient, and can meet the requirements of less than or equal to 200km/h train speed requirements.
2. It is suitable for 1-1/4 " Radiating Coaxial Cable, fixed Radiating Coaxial Cable orientation, clamping Radiating Coaxial Cable to prevent its movement.
3. All metal parts are made of high quality 304 or stainless steel, We can also provide 316 stainless steel material according to customer needs.
4. Halogen free and environmentally friendly. Compliant with ROHS directive.
TECHNICAL INDEX
Character of service
1. Ambient temperature during use : －45 ℃～＋85 ℃
2. Ambient temperature during installation: －20℃～＋60 ℃
3. Relative humidity for reliable operation: RH≤95%
Environmental performance
1. low temperature, -40 ℃±2 ℃, 72h No crack
2. high temperature, 150 ℃±2 ℃, 72h No crack
3. GDJS，25 ℃±3 ℃，＋80 ℃±2 ℃，（93±3）%，24h,10 times No crack
4. Salt spray resistance property，35 ℃±2 ℃，5 %，240 h No red rust
5. Solar radiation resistance No powder
Mechanical Specifications
1. Maximum Load 1500N (minimum)
2. Shear capacity 1000N (minimum)
3. Axial pull-out force 150N (minimum)
MATERIAL INFORMATION
1. Non metallic parts Nylon PA66
2. metallic parts 304 Stainless steel
Cable compatibility
1. Compatible radiating cable diameter, minimum 36mm
2. Compatible radiating cable diameter, maximum 39mm
3. Nominal Size 37.5mm
Recommended / Maximum Clamp Spacing 1.0～1.3m
Minimum Distance to Wall 80mm
>>
