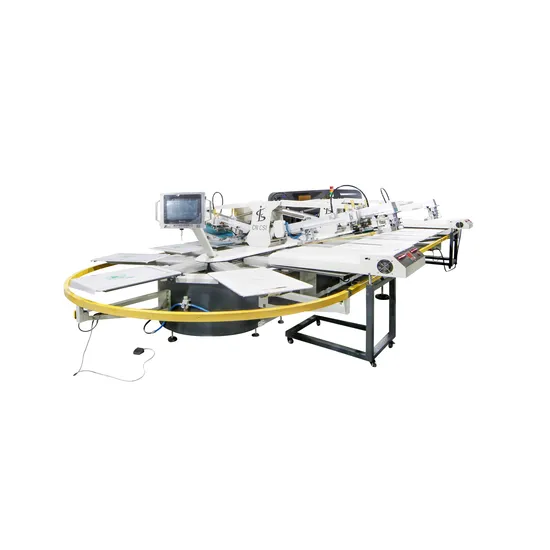

Automatic Oval Screen Printing Machine/Textile Printer Machine

Product Description

Product Description

Product attributes

Model	SPO-6/24	SPO-8/30	SPO-10/36	SPO-12/42	SPO-14/48
Print Color	6	8	10	12	14
Stations	24	30	36	42	48
Max Print Area	500×750mm	500×750mm	500×750mm	500×750mm	500×750mm
Max Pallet Size	530×950mm	530×950mm	530×950mm	530×950mm	530×950mm
Max Frame Size	600×1000mm	600×1000mm	600×1000mm	600×1000mm	600×1000mm
Main Motor Power	3.0KW	3.0KW	3.0KW	3.0KW	3.0KW
Each Dryer Power	13.6KW	13.6KW	13.6KW	13.6KW	13.6KW
Voltage	AC380V/3PH/50HZ	AC380V/3PH/50HZ	AC380V/3PH/50HZ	AC380V/3PH/50HZ	AC380V/3PH/50HZ
Dimension	1122×320×133cm	1362×320×133cm	1602×320×133cm	1842×320×133cm	2082×320×133cm
Weight	2000KG	2600KG	3200KG	3800KG	4400KG

Printing steps
Oval type automatic Screen printing machine is based on rotary screen printing machines,its performance and printing process is very well.The machine adopts modular design, high-strength aluminum alloy structure, the main rotation system adopt high-precision servo drive to assure the fast and stable operation,with the features of accurate printing, reliable performance, easy operation. Suitable for water-based ink, plastisol ink, Solvent ink and other printing processes, standardly configurated with flocking function.It's best for pieces and various garment printing, and also flocking processing.

Control system:
1.Man-Machine interface and PLC system ,self-diagnosis.
2.Language can be exchanged between Chinese and English by Touch screen , and the help simplifies the process of operation and training.
3.Real-time display of production speed to more clearly control the operating costs.
4.four operation modes: match mode, preheat platen, automatic cycle, single cycle.
Printing platen:
1.Adopt the high strength and high-temperature resisting aerospace aluminum plate
2.Installing and replace is very rapid.
About US
Our Service 1.Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty period , we will send a free replacement parts to you .
2.Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and training, but all the charges for the engineers should be paid by buyer.
3.Quotation
The quotation is available in 30 days

Payment And Ship
FAQ
Q1: We are interested in the screen printing machine,Could you quote the latest price to us?
A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:
1.How many colors do you want to print ?
2.What''s the max printing size? (Such as 500x700mm or biger or smaller)
3.What''s the capacity per hour do you request? (Such as 900pcs/h)

Q2:What''s the MOQ, Delivery time and payment terms?
A2: 1. MOQ: 1 set
2. Delivery time: 25-30 workdays after receiving T/T 30% payment deposit
3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight

---
