Creator Wireless Audio Conference System

Product Description

Product Overview

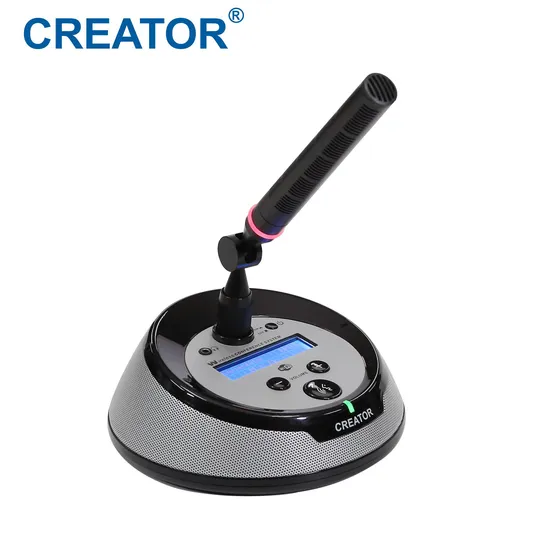

CR-WiFi6302/4B-N is a full digital wireless conference discussion microphone, based on interference-free encryption 5G WiFi, flexible and secure, it's easy to integrate with any meeting room. And it adopts state-of-the-art design to ensure the device is stable and durable.
Features
· 5G WiFi transmission technology and strictly digital protection ensure the privacy of the meeting, free from malicious eavesdropping and jamming.
· Non compressed audio transmission technology, the sampling rate of 48K, 20H2-20KHZ bandwidth, perfect sound.
· With low delay technology, the output minimum delay from microphone to speaker is less than 5ms.
· Acoustic feedback suppression, the built-in loudspeaker automatically turns off when the microphone is turned on, avoiding sound playback.
· Equipped with high performance rechargeable and removable lithium battery, the battery support 14 hours of continuous speech or 16 hours static standby.
· Work with the CREATOR HD camera tracking controller and HD infrared automatic camera to support mobile camera tracking.
· Built-in magnetic loudspeaker, built-in antenna design.
· LCD display shows microphone on/off, ID settings and other info.
· Microphone stem is detachable and changeable.
· Support various conference modes like FIFO, APPLY, NORMAL.
· Chairman unit has priority control.
· Support PC software microphone smart control.
Specifications

Model No.	CR-WiFi6302/04B-N
Maximum Power Consumption	2.6W
Battery Output Voltage	7.2V
Battery Capacity	3200mAh
Continuous Speech Time	14 Hours
Static Standby Time	16 Hours
Full Charging Time	≤3 Hours
Frequency Response	20Hz-20KHz
Earphone Impedance	>32 Ohm<1K Ohm
Louderspeaker Power Consumption	2*15mw/32 Ohm
WiFi Standard	IEEE Draft 2.0 802.11n
Radio Frequency Range	4.900-5.850GHz
Transmitting Power	15dBm
Antenna Gain	2dBi
Earphone Jack	3.5mm (0.14 inches) Stereo Headphone Jack
Bottom	Basement for Pluggable Microphone
Color	Black & Silver

Panel Drawing
System Diagram

Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.
