CNC 4 Roll Hydraulic Steel Plate Bending Machine Automatic Sheet Metal Roller Bender Iron Aluminum Bending Rolls Pipe Tube Rolling Forming Pressing Machine

US$22,800.00 1 Set (MOQ)

Basic Info.

Model NO.

W12CNC-16x2000

Forging Forming Method

Free Forging

Power Source

Hydraulic Pressure

Feature

Automation

Certification

ISO9001

Warranty

24 Months

Customized

Advantage

Easy Operation

Condition

New

Rolls Number

Driving Rolls

Rolls Material

42CrMo

Rolls

Induction Hardened

Side Rolls

Swing Arm Movement

Drop-End Open

Hydraulic

Control Desk

Independent Mobile

Digital Readouts

Touch Screen

Cone Rolling

Possible

Side Supports

Hydraulic

Central Supports

Hydraulic

Loading and Unloading Systems

Automatic

Feeding Table

Motorized

Rolls Polish

Optional

Rolling Speed

Variable

Transport Package

Standard Export Package

Specification

16x2000mm

Origin

China

HS Code

8462299000

Production Capacity

300 Sets / Year

Packaging & Delivery

Package Size

3800.00cm * 1500.00cm * 1800.00cm

Package Gross Weight

7000.000kg

Product Description

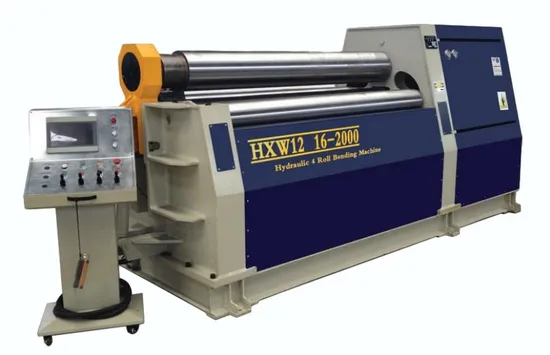

CNC 4 Roll Hydraulic Steel Plate Bending Machine Automatic Sheet Metal Roller Bender Iron Aluminum Bending Rolls Pipe Tube Rolling Forming Pressing Machine

Product Description
This four roll plate bending rolls are recognized worldwide as the fastest, safest, most precise and easy to use plate roll available in the all range. This is a fully hydraulic 4-roll bending machine with pre-bending. Rolls length up to 6.000mm, plate thickness up to 150 mm

This Advanced Design Has The Following Benefits Such As:
(1) Plate is introduced horizontally (and not tilted as on the three roll double pinch)
(2) Plate is squared instantly against the back roll (reducing risk of a mis-matched end condition of the part)
(3) Requires space only on one side of the machine, where the plate is introduced to the machine
(4) Greatly reduced flat-end (due to better pre-bending) thanks to the clamping roll that can take the edge to the precise tangent points of the top and bottom rolls
(5) It is the fastest machine to roll a can, as it would require only one position for each side bending roll
(6) The entire cylinder can be finished in only one pass (within a suitable capacity), including pre-bending of the edges
* No need to pre-bend both ends before starting to roll the entire cylinder, as required with a 3 roll
* No need to remove, turn and re-insert the plate as on a 3 roll single pinch
(7) The four roll could be even 50-80% faster and more productive than any style three roll
(8) The most suitable for CNC operation, as the plate is under a better control, clamped between the top and bottom rolls, until the part is finished

The Four Roll Design Is Recommend For Clients Who:
1. Wish to operate through CNC, with less dependence on operator skills
2. Look for more steady quality of the rolled products.
3. Look for high productivity, and increased profits.
4. Require good accuracy and quality improvements.
5. Need handling equipment for larger plates, who are also concerned for production or safety reasons.
6. Are new to plate rolling, as it is the easiest plate roll to operate.

Product Parameters

Packaging & Shipping

Our Advantages

Main Features
1. Extremely robust structure machined with CNC control machines
2. Two hydraulic motors coupled to planetary gear units for the rotation of the two central rolls
3. Hardened rolls / Hardened and polished rolls
4. Separate control desk on wheels
5. Hydraulic opening of shoulder by control desk
6. Hydraulic inclination of lateral rolls for conical bending directly from control desk
7. Numerical control for automatic production
8. Movements of rolls on swing guides to reduce flat part
9. It can be used to roll tubes, tube segments, rounded boxes, ovals or other shapes.
10. Rolls rotation on high resistance selfaligning bearings
11. Rolls Cambering: know how variable cambering to avoid reel and barrel effect to increase bending performance and precision

FAQ
(1) How long is the service life of your product?
It depend on the worker skills and experience and working hours every day, if do normal maintenence for the rolling machine under instruction, its life can upto 10 years. and we need to see the working plan every day, if working 12 hours even more, that will effect the service life.

(2) What are the specific categories of your products?
We have main 3 kinds of roll bending machine, Mechanical 3 roller, hydraulic 3 roller with prebending and hydraulic 4 roller with pre bending.

(3) What are the specifications and styles of existing products?
We have light and heavy types rolling machine, thickness from 6-150mm, width 1000-12000mm, and we can make special machine as per customer special request, for example, smaller rolling diameter, special application like oil pipe, wind tower, loader etc.

Rolling Process

Application

(1) Shipyard
The ship plate bending machine has been designed with the specific demands of ship yard production in mind, which means offering high bending capacities along with excellent flexibility.
(2) Wind Tower
To serve energy industry, to roll the heavy duty, thick plates to build nuclear reactor and turbine housings
(3) Boilers, pressure vessels, heat exchangers
for the design of plate bending rolls, manufacture of tanks, barrels and water treatment units.
(4) Steel structure
Using the right equipment, you can manufacture steel structures such as bent segments, pipe structures, cones domes etc
