ASME 40m3 LPG Gas Filling Plant Station 20tons LPG Skid Station for Nigeria Market

Product Description

40m3 LPG Skid Station 40,000Liter LPG Filling Station 40CBM LPG Gas Tank Station
ASME 40m3 LPG Gas Filling Plant Station 20Tons LPG Skid Station For Nigeria Market
Applications:
LPG tank gas station (also calledlpg cylinder filling station ,lpg skid station ,lpg gas station ,lpg station , filling gas plant ,gas plant ,cooking gas refill plant , cooking gas station ,propane gas filling station ,propane refilling station , ) is used to be a mobile gas stationto refill cylinders or cars after equipped with gas dispenser, LPG gas pump.
The LPG tank material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
LPG tanks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
Competitive Advantage:
1.Our LPG tanker truck is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
2.Emergency shut off valve fore safety
3.LPG dispenser can refill cylinder or cars

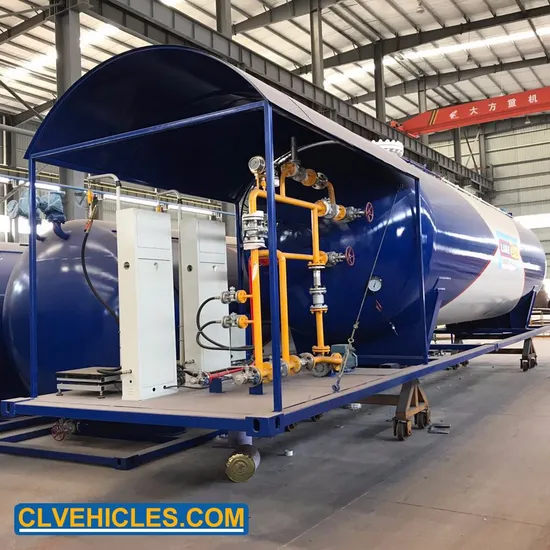

LPG skid station is deisnged and built to work at any site without any connections or civil works. It contains LPG tank, LPG dispenser/ LPG filling scale, LPG pump, Control box,Leakage detection,water cooling system, level meter and valves as complete set on the skid, available for filling the LPG vehicles and LPG cooking/camping cylinder.
LPG Skid Station Technical parameters:

40M3 / 40CBM LPG TANK DIMENSIONS
Volume of Tank			40CBM
Filling Weight			15960 kg
Tank Weight			8630 kg
Thickness of Shell (mm)			12 mm
Thickness of Endplate (mm)			14 mm
Tank Diameter (mm)			2300 mm
Tank Dimensions (mm) (length x width x height)			10040 x 2324 x 2914 mm
Material of Tank and Main Pressure Parts			Carbon Steel Q345R
Filling Medium			Liquefied Petroleum Gas ( Propane)
Design Pressure			1.77 MPa
Corrosion Allowance			1 mm
Medium Density			500 kg/ M3
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item		Specification			Quantity
Discharge Pipe		DN80			1
Inflow Pipe		DN80			1
Outlet		DN50			1
Gas phase balance pipes		DN50			2
Manhole		DN450			1
Drain Hole		DN50			1
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below.
LPG Skid Part list
Item	Model Number			Quantity (PCS)
LPG Tanker	40CBM			1
LPG Filling scale	/			1
Filling pump (Chinese Brand)	/			1
Motor (Chinese Brand)	/			1
Cut-off Valve	J41N-40 DN50			25

Related Pressure Vesssel LPG Products:
For more LPG Skid Station information, please feel free to contact me or send an inquiry to me:

---
