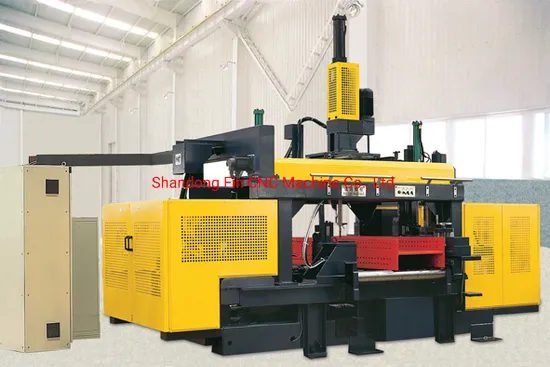

FINCM SWZ700D/9 CNC H-Beam Channel-Beam Three-Dimensional Drilling Machine, CNC Beam Drilling Machine for Metal Construction Works

Product Description

Product Description:
SWZ700D/9 CNC high speed drilling machine for H-beams&Channel-beams.
Applicable Industry:
Can be widely used in building, bridges and other industry fields.
Main Technical Specifications:

range of workpiece	H beam	section height H	100~400mm
		flange width B	75~300mm
	Channel beam	section height H	126~400mm
		flange width B	53~104mm
		min.length of automatic feeding workpiece	1500mm
		max.length of automatic feeding workpiece	12000mm
		max.weight of workpiece	1500Kg
Drillig spindle	drillig power head	Number of drilling headstocks	3
		Number of spindles per drilling headstock	3
		Drilling range of spindle on both sides	φ12.5-φ30mm
		Drilling range of the middle spindle	φ12.5-φ40mm
		spindle motor power	3×7.5KW
		spindle speed(variable speed)	180~560r/min
		Drilling spindle taper	morse
CNC axis	Feeding worpiece AXIS	Servo motor power	4kw
		Max.speeding	40m/min
	horizontal movement of upper unit	Servo motor power	1.5KW
		Max.speeding	10m/min
	vertical movement of mobil side and fixed side	Servo motor power	1.5kw
		max speeding	10
		machine appearance size(L×W×H)	about 4.377×1.418×2.772m
		machine weight	about 4300Kg

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
Random accessories list:

NUMBER	Part number	NAME	Specification	QUANTITY	Remark
1	SWZ10.1-88	wedge iron (morse1#)		1
2	PD16.0-25	Wedge iron(3#)		1
3	PD16.0-26	wedge iron (morse4#)		1
4	JB/T3411.67	Transition set	4-3	3
5	JB/T3411.68	extension sleeve	4-2	3

List of the Key Outsourced Components

NO.	Name	Band	Country
1	PLC	INOVANCE	China
2	Linear rolling guide pair	HIWIN/CSK	Taiwan(China)
3	Hydraulic pump	Justmark	Taiwan(China)
4	Electromagnetic hydraulic valve	ATOS/Yuken	Italy / Japan
5	Servo motor	INOVANCE	China
6	Servo driver	INOVANCE	China
8	Computer	Lenovo	China

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
Product Feature:

The cnc machines SWZ700D/9 is mainly composed of main body, CNC slipway, drilling spindle box, support roller,electric system, hydraulic system, cooling system, etc..
The machine tool adopt a fixed bed and workpiece movable structure.The bed is welded by beam steel and steel plate. After sufficient heat treatment, it has the advantages of good rigidity and stable performance.
The machine tool have three CNC sliding table,namly fixed side CNC sliding table .the moving side CNC sliding table and upper uint CNC sliding table. The three sliding tables are similar in structure, and they are all composed of a carriage, a sliding table and a servo drive system.
The machine tool has three drilling spindle boxes. Each drilling spindle box is equipped with three drilling spindles. Three types of drills can be clamped. They are installed on the fixed side, the movable side and the upper unit CNC sliding table respectively. Horizontal and vertical drilling can be processed into three different apertures on the workpiece.
The self-control stroke drilling power head used in this machine is our company's patented technology. It can automatically perform fast forward-work forward-fast reverse conversion without manually setting the length of the drill bit and the thickness of the workpiece. This kind of conversion is realized through the combined action of machine, electricity and liquid, which is reliable in work and convenient in maintenance.
The spindle speed of each drilling power head is controlled by the frequency converter, steplessly adjusted; the feed speed is steplessly adjusted by the speed control valve.
Workpiece clamping adopts hydraulic clamping,workpieces are fixed and calmped from horizontal direction an the vertital direction .
The machine is equipped with the detection for workpiece width and workpiece web height,which can automatically compensate
for machine errors caused by the irregular workpiece outline improve the machine accuracy.
It adopts a combination of centralized lubrication and manual lubrication. A centralized lubrication device is used for regular and quantitative lubrication of certain linear guides and lead screws, and other lubrication points are lubricated by manual lubrication.
When drilling, the aerosol cooling method is used to cool the drill bit, that is, it is realized by air + high-pressure water, which has the advantages of low coolant consumption and low cost. The flexible nozzle is installed on the spindle box, which can easily adjust the spray position of the nozzle, so that it can always cool the drill bit.
Equipped with a chip box device, located under the main machine of the drilling machine, used to collect iron chips generated during drilling.
Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
