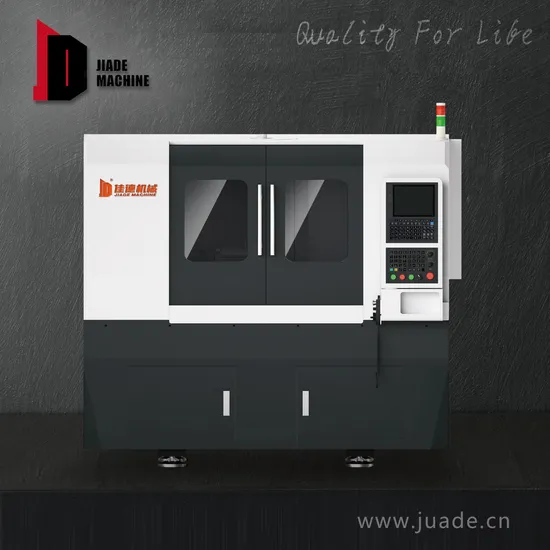

High-Efficiency CNC Auto Pointer Grinding Machine

Product Description

Product Description
CNC automatic pointing grinding machine can be convenient debugged and simple operated, one worker operate multiple machines, compare to some domestic similar products, it can save about 70% electricity consumption, save 60% grinding wheel consumption, and can improve 30% output. The machine adopts the most advanced computer and electrical system and hydraulic control system, Equipped with self-developed tool grinding software, automatic grinding pointing angle. All castings of the machine are cast as a whole to maintain the stability and accuracy of the equipment.

Machine Function
Product Parameters

Model	MJMKX5/CNC Splitter Pointing Grinding Machine NO.MJMKX5
Tool size	3mm-13mm
Machine construction	Single column
Axis of motion	X-Axis:300mm
	Y-Axis:360°
	Z-Axis:300mm
	A-Axis:300mm
	B-Axis:90°
Tool length	205mm
Grind wheel diameter	Inner75mm Outter250mm Thickness25mm
Spindle type	High-precision electrical spindle
Drive system	Pin roller lead screw,direct drive
Electrical power	15KVA
CNC data	700 bus CNC,High-speed SSD,MECHATROLINK protocol, NXP-Rt1176M7 main controller
Machine body	High-performance cast iron
Machine size	Length:2170mm
	Width:1680mm
	Height:1860mm
	Weight:3000kg

Detailed Photos
Quality Control

Company Profile

---
