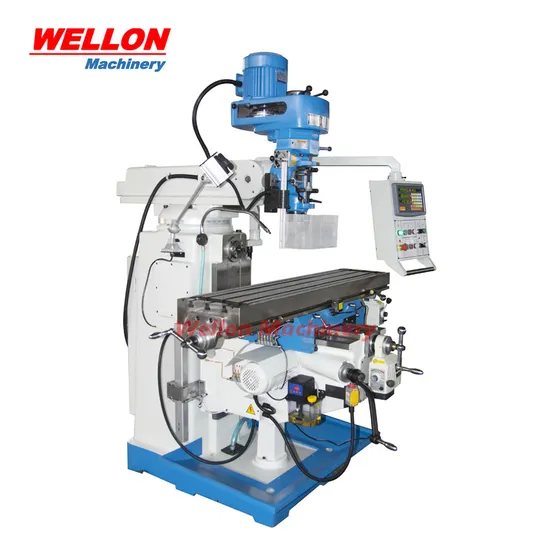

Turret Milling Machine with Horizontal Milling Head (X6325W Universal Milling Machines)

Product Description

Products Description:
Performence Features: Cast iron with high precision, long service life
Three axis hardening treatment
Equipped with manual lubricating device.
Turret milling head with tilt from Taiwan
With horizontal milling hea
Technical parameter:

Specification	X6325H
Spindle taper	R8 NT30 NT40(vertical)
	NT40 (horizontal)
Spindle travel (mm)	127
Spindle speeds range (r.p.m)	66-4540 (V) 16 steps
	40-1300 (H) 12steps
Distance from spindle to column(mm)	155-635
Spindle nose to table top(mm)	0-460
Table size (mm)	1270*254
Max. travel of table (mm)	700x300x400
T-slot number width distance (mm)	3/16/65
Work table Max load weigh(kg)	350
Main motor power (KW)	2.2 (3HP) (Vertical)
	3 (Horizontal)
Head swivel	90°
Head tilting	45°
Packing size(mm)	1750*1530*2340
N.W/G.W (kg)	1500/1650

With Standard Accessories:
Drill chuck
Collet chuck kits
Working lamp
Coolant system
Reduction Sleeve
Mill arbors
Draw bar
Chip tray
Some tools
Optional accessories :
X axis auto power feed
Y axis auto power feed
Machine vice 160mm
3-Axis Digital readout
Universal Dividing Head F11-125A
Rotary table TSL320
Air draw bar
Variable spindle speed
58 pcs Clamping kits
Slotting head
Spindle protection
New type Aluminum arm support
Z axis motorized lifting
