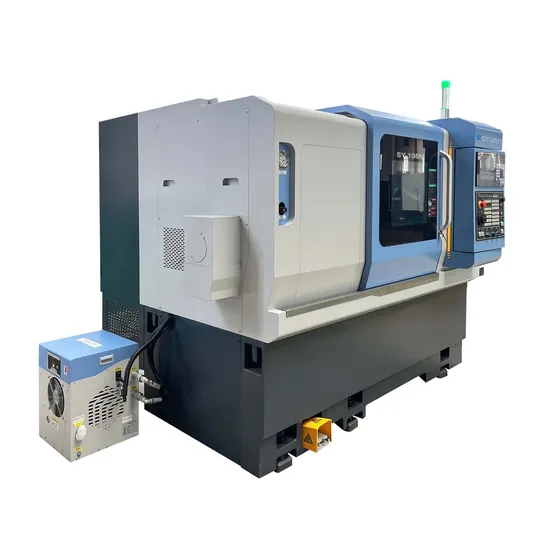

Auto CNC Metal Lathe CNC Machine with Y Axis

Product Description

Product Description
Our Auto CNC Metal Lathe Machine boasts an impeccably optimized 30-degree inclined structure, offering exceptional precision, unparalleled rigidity, and outstanding cutting performance.
The lathe's stability is enhanced by its high-strength HT300 cast iron one-piece solid structure, meticulously designed using finite element analysis. This ensures the entire machine
exhibits superior rigidity and stability, maintaining reliable accuracy over long periods. This design improves processing stability, extends tool life, and effectively eliminates stress.
In addition to its high precision and stability, the machine features a robust roller linear rail design and a transmission system with screw pre-tensioning, ensuring improved
performance. The machine's sleek and elegant appearance perfectly aligns with modern trends.
Main features of this machine tool:
1. The 30° inclined layout and integrated bed base structure significantly enhance the machine's bending and torsional rigidity during operation. This design ensures high precision and stability throughout the entire machine, providing a strong guarantee of performance.
2. The direct drive synchronous spindle device includes a magnetic ring incremental encoder with 20 arc seconds of positioning accuracy and 40 arc seconds of C-axis indexing accuracy. This setup eliminates spindle vibration, maintaining a nose deflection accuracy within 0.002MM, thereby improving workpiece surface finish. The rear-mounted rotor enables faster installation and maintenance. The spindle motor's cooling system ensures a constant operating temperature, minimizing thermal displacement. This rigorously tested spindle system supports both finishing and heavy cutting, making it ideal for the mass production of complex, high-smoothness products.
3. The high-rigidity servo turret is designed with precision in mind. Equipped with a high-precision clutch, it ensures accurate positioning and repeatability, driven by a servo motor for bi-directional or arbitrary tool selection. The hydraulic mechanism facilitates quick and precise tool changes through clutch action signal feedback.
4. Featuring roller linear guides and precision-ground ball screws, the machine guarantees optimal accuracy and durability. Each axis uses a direct transfer structure and double-anchor pre-relay method to ensure thermal stability and minimize displacement. The heavy-duty linear slide rails maintain accuracy under impact, with smooth, low-noise displacement, extending service life.
5. The programmable hydraulic tailstock and high-rigidity integral tailstock eliminate vibration, offering superior stability. Users can control it manually or programmatically with ease and reliability.
6. Users benefit from a comprehensive hydraulic and lubrication system, featuring high-quality components that drastically reduce failure rates. The design ensures simplicity and reliability, with centralized quantitative automatic lubrication.
7. The machine includes a Taiwan rotary chuck cylinder and an optional automatic chip removal device, significantly reducing operator labor intensity and enhancing safety and efficiency. All functional components are programmable, and custom configurations can be designed to meet specific user requirements.
Product Parameters

Item	Unit	SY108M
Max. swing diameter over bed	mm	Φ600
Max. processing diameter	mm	Φ300
Max. processing diameter over tool holder	mm	Φ200
Max. processing length	mm	300
Distance between centers	mm	450
Spindle type	type	A2-6
Max. spindle speed	rpm	4300
Hydraulic Cylinder/ Chuck	lnch	8″
Spindle bore diameter	mm	Φ65
Max. bar diameter	mm	Φ52
Direct drive spindle motor power	kw	18/22
X axis travel	mm	170
Z axis travel	mm	320
X/Z axis rail specifications	spes	Roller35
X/Z axis motor power	kw	2.4
X/Z axis rapid speed	m/min	30
X/Z axis positioning accuracy	mm	±0.005
X/Z axis repeatability	mm	±0.003
Power turret type	pcs	BMT45-12T
Power turret motor	KW	4
Max. power tool holder speed	rpm	5000
External diameter tool holder specification	mm	25X25
Internal diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.15
Positioning accuracy	/	±2"
Repeatability	/	±1"
Hydraulic tailstock	/	Programmable
Max. Tailstock travel	mm	360
Tailstock sleeve tapered hole	type	Mohs4#
Sleeve diameter	mm	80
Sleeve travel	mm	100
Machine size	mm	2400x2000x1900
Machine weight	kg	3800
Cutting fluid tank volume	L	150
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricat tank volume	L	2
Automatic lubrication pump motor power	W	50
Coolant water pump power	W	750
