Practical Hydraulic Bending Machine for Steel Structure Works 12mm Plate Press Brake

Product Description

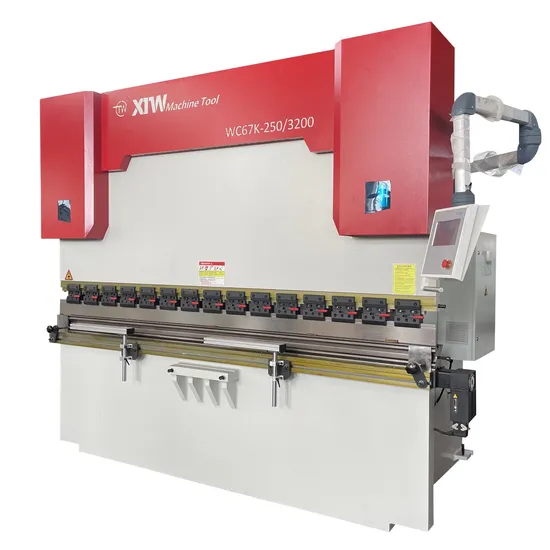

Practical Hydraulic Bending Machine for Steel Structure Works 12mm plate Press Brake Product Description TP10S CNC Hydraulic Plate Bending Machine
-WC67K Series CNC Press Brake machines have torsion bar synchonous CNC two-Axis control capability. They are suitable for bend parts at a low-cost price. CNC torsion bar synchro hydraulic press brake is good for bending sheet metal plates in the factories. It is a cost-effective choice in the steel structure industry, rough machining factories, truck manifacturing industry, etc.
-Maximum 3+1 Axis Control(X,Y,R&V Axis)
-7 Inches TFT Colourful touch screen and high-contrast
-Simple Pages, Large Keys, Easy for Operating
-Faster and reliable CAN communication between controller and drives
-Complete programming for efficient mass-production with multiple bends
-Angle and length automatic calculations of bend functions-Angle and length correction-Configurable retraction of the back gauge during the bending process.-User friendly graphic tool management-Bending steps and programs can be memorized powerful-High reliability and anti-jamming capacity-A configuration table for valves sequencing-Software stroke limit-Easy manual movement(Password protection)-Wizards of X/Y axis(Password protection)
Crowning Table
+1(V) axis, in order to ensure the machining accuracy of the workpiece, a mechanical tie rod deflection compensation worktable is specially equipped to control the convex amount of the worktable, and accurate deflection compensation can be obtained on the entire length of the worktable. In the compensation worktable, It consists of multiple sets of wedges with different angles. They can be driven by the motor to form a set of ideal position plus convex curves according to the given signal of the system. Perfect compensation is realized on the whole length to offset the deformation of the working table of the slider under the stress state and improve the quality of the parts. In this way, the winding compensation between the worktable and the slider can be increased or decreased according to the ground pressure, and the pre-convex amount of the convex device is controlled by the numerical control device. After the data about the thickness of the sheet, the opening of the lower die and the tensile strength are input into the numerical control system, the bending force and the compensation value of the worktable and the slider are automatically determined. As a result, a precise amount of pre-bulge can be obtained every time it is bent.
Product Parameters

Specification	Nominal Pressure(KN)	Length of Worktable(mm)	Distance between uprights(mm)	Throat Depth(mm)	Ram Stroke(mm)	Max Opening Height(mm)	Motor Power(KW)
WC67K-40T1600	400	1600	1200	200	100	300	4
WC67K-63T2500	630	2500	1900	250	120	350	5.5
WC67K-63T3200	630	3200	2500	250	120	350	7.5
WC67K-100T2500	1000	2500	1900	320	120	380	7.5
WC67K-100T3200	1000	3200	2500	320	120	380	7.5
WC67K-100T4000	1000	4000	3000	320	120	380	7.5
WC67K-125T2500	1250	2500	1900	320	120	380	7.5
WC67K-125T3200	1250	3200	2500	320	120	380	7.5
WC67K-125T4000	1250	4000	3000	320	120	380	11
WC67K-160T3200	1600	3200	2500	320	200	460	11
WC67K-160T4000	1600	4000	3000	320	200	460	11
WC67K-200T3200	2000	3200	2500	320	200	460	15
WC67K-200T4000	2000	4000	3000	320	200	460	15
WC67K-200T5000	2000	5000	4000	320	200	470	15
WC67K-200T6000	2000	6000	4800	320	200	470	15
WC67K-250T3200	2500	3200	2500	320	250	470	22
WC67K-250T4000	2500	4000	3000	320	250	520	22
WC67K-250T5000	2500	5000	4000	320	250	520	22
WC67K-250T6000	2500	6000	4800	320	250	520	22
WC67K-300T4000	3000	4000	3200	400	250	520	22
WC67K-300T6000	3000	6000	4800	400	250	520	22

Certifications
Packaging & Shipping About XTW Machine Tool
NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.

---
