Pharmaceutical Liquid Separator Separation Equipment

Product Description

Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd At CHM, we specialize in the technical development, product testing, manufacturing, sales, and after-sales of disc separators. Our professional team of experts with over 30 years of experience can customize separation solutions for customers in the pharmaceutical, biomedicine, and biochemical industries. We also provide timely and efficient preventive maintenance, troubleshooting, repair, machine refurbishment, and upgrade services.
Trust CHM for all your disc separator needs!
Separator Product Description
Working Principle of Separator In the suspended liquid, multiple phase materials with different densities and indissolubilization obtain different sedimentation rates in the centrifugal force field. Based on this principle, rapidly rotating the disc stake can generate a great G force & more great equivalent sedimentation area, which the differential phase materials can be separated in a short time.
Company Information: Company Name: Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Disc Separator Product Description
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Disc Separator Features:
No filter media consumption, eliminating secondary pollution
Continuous and stable operation
Fast processing speed
Effective treatment
Low energy consumption
Moderate capacity
SIP and CIP functions
Compact footprint
Low operating cost
High automation, reliable operation, and low labor intensity

Disc Separator Separation Module System Diagram
For more information, please contact Changzhou Qianmai Mechanical Equipment Technology Co., Ltd.
Product Description
Product Description:

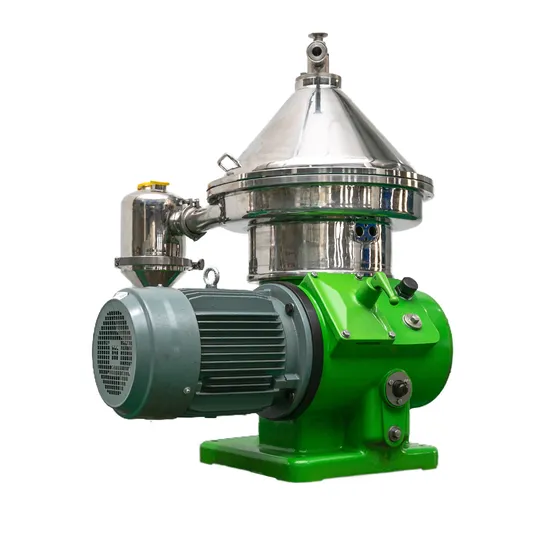

The separator from Changzhou Qianmai Mechanical Equipment Technology Co., Ltd efficiently separates liquid/liquid/solid three-phase and liquid/solid two-phase materials. It can separate non-emulsified liquid particles as small as 2μm and solid particles (including cell debris) smaller than 0.5 microns with a density above 1.02g/ml.
Cell Collection Equipment for Fermentation Industry Changzhou Qianmai Mechanical Equipment Technology Co., Ltd offers DFBS and DQBS series models specifically designed for the biological fermentation industry. These models are crucial for cell collection, impacting product quality, yield, and downstream processing costs.
Model Features:
Meets GMP and CIP/SIP requirements
High separation G force up to 14500G for efficiency and stability
Customizable design options, including single separator or modular design

Typical Applications:
Concentration and clarification of fermented mash (e.g., escherichia coli, bacillus, probiotics)
Extraction of vitamins, antibiotics, hormones
Collection of microbial cells
Extraction of blood product components
Separation and concentration of yeast
Processing Chinese medicine extracts, pharmaceutical intermediates, synthetic pharmaceutical products
Extraction and separation in genetic engineering

Product Parameters

Model	Treatment Capacity (L/H)	Motor Power (KW)	Inlet Pressure (MPa)	Outlet Pressure (MPa)	Weight (KG)	Overall Dimensions (mm)
DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
DQBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
DQBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
DQBS470	3000-6000	22	0.05-0.1	≤0.4	1670	1850*1550*1800
DFBS550	2000-4000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

Detailed Photos Company Profile Packaging & Shipping FAQ
Product Description
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Are you looking for a reliable manufacturer with over 30 years of experience in mechanical equipment technology? Look no further than Changzhou Qianmai. Our expert team is dedicated to providing top-notch products and services tailored to your specific needs.
Visit Our Factory If you're interested in visiting our factory, we can assist you in finding the best route. We also offer pick-up services from Changzhou airport or train station. For virtual visits, we can arrange video conference calls to showcase our facilities.
Customized Services At Changzhou Qianmai, we offer OEM/ODM and other customized services to meet your unique requirements. Our one-stop service includes research, design, manufacturing, installation, maintenance, and more.
Payment and Delivery We accept T/T payments with flexible terms for both new and regular customers. Our delivery terms include EXW, FOB, CFR, CIF, DDU, tailored to your purchase order. Delivery times vary based on product types and quantities, with expedited options available for urgent needs.
Warranty and After-Sales Support All our equipment comes with a standard 1-year warranty, with additional instructions for special circumstances. In case of damaged parts or malfunctions, our 24/7 online after-sales service team is ready to provide technical support and spare parts promptly.
Choose Changzhou Qianmai for reliable, customized mechanical equipment solutions backed by decades of expertise. Contact us today to discuss your requirements and experience our exceptional products and services.

Application	Model	Treatment Capacity	Motor Power	Inlet Pressure	Outlet Pressure	Weight	Overall Dimensions
		(L/H)	(KW)	(MPa)	(MPa)	(KG)	(mm)
Animal Fat/Plant Oil	DQRE260	700-1500	3	0.05-0.1	≤0.3	280	620*500*1100
	DQBE260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBE350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFHE450	3000-4000	11	0.05-0.1	≤0.4	1450	1850*1550*1800
	DFHE610	6000-10000	22	0.05-0.1	≤0.4	2180	1980*1610*1950
Food/Beverage/Dairy	DQRP260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DQHN260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DQBP350	1200-2000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DQBN380	2000-3500	7.5	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQBN410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQHP510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHP610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Biological Fermentation	DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DFBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
	DFBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DFBS510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFBS610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Industrial Waste Liquid	DFBY200	200-1000	0.37	0.05-0.1	≤0.3	80	500*600*1200
	DFBY260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DFBY260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBY350	2000-3000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBY410	3000-4000	11	0.05-0.1	≤0.4	1600	1850*1550*1800
Chemical Liquid Coal Tar Marine/Mineral Oil	DFBY510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHY610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

---
