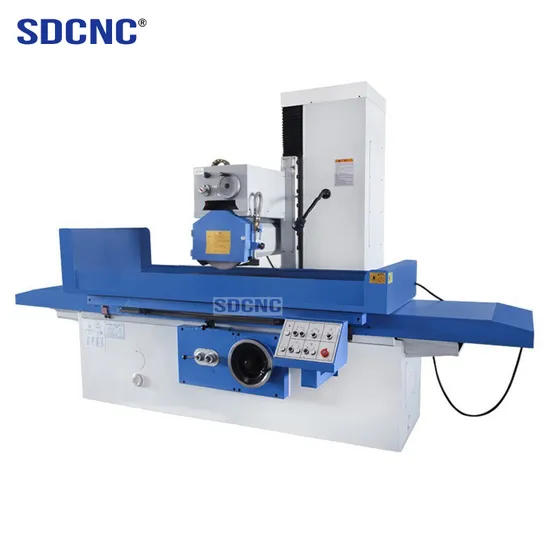

Sdcnc High Precision Surface Grinding Machine M7163 Ordinary Knife Grinder Table Surface Grinding Machine

Product Description

Detailed Photos

The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Product Parameters

Technical Description		Unit	M7150A M7150D	M7150A*1600 M7150D*1600	M7150A*2200 M7150D*2200
Table size(L*W)		mm	1000*500	1600*500	2200*500
Max.grinding size of work piece(L*W)		mm	1000*500*500	1600*500*500	2200*500*500
Longitudinal travel		mm	200-1100	200-1700	200-2300
Table longitudinal speed		mm/min	500*1000	500*1600	500*2200
T-slot of table(No.*width)		mm	3*22	3*22	3*22
Distance from spindle center to table surface		mm	700	700	700
Max. loading of table(include magnetic chuck)		kg	700	1240	1410
Magnetic chuck size		mm	500*1000	500*1600	500*2200
Wheel size(OD*Width*ID)		mm	400*40*127	400*40*127	400*40*127
Spindle speed(step less)		r/min	1440	1440	1440
Worktable speed		m/min	3~27	3~27	3~27
Wheel head transverse moving	Continuous feed rate	m/min	0.5-4.5	0.5-4.5	0.5-4.5
	Intermittent feed	mm/t	3~30	3~30	3~30
Wheel vertical moving	Rapid speed	mm/min	400	400	400
	Hand wheel feed per gra.	Mm/gra.	0.005	0.005	0.005
	Hand wheel feed per rev.	Mm/rev.	0.515	0.515	0.515
Spindle motor		KW	7.5	7.5	7.5
Hydraulic motor		KW	5.5	5.5	5.5
Coolant motor		KW	0.125	0.125	0.125
Elevating motor		KW	0.55	0.55	0.55
Total rated power		KW	12.25	12.25	12.25
Surface roughness		μm	Ra0.63	Ra0.63	Ra0.63
Gross weight		kg	5000	7100	8500
Package dimension(L*W*H)		cm	320*228*252	520*228*252	680*228*252

Wheel Head Moving Metal Surface Grinder Details
High strength cast iron foundation Machine transverse moves hydraulically or manually; Longitudinal moves hydraulically with variable speed Vertical moves manually or motor drives The machine is suitable for heavy duty grinding with high grinding efficiency Forced lubrication guideway, prolong the service life of machine.
Wheel Head Moving Metal Surface Grinder Standard Equipment Coolant system Working light Leveling wedges Foundation screw Wheel flange Wheel balance arbor Magnetic chuck Standard wheel Operation manual Wheel dressing base
Wheel Head Moving Metal Surface Grinder Optional Equipment Diamond pen Magnetic separator Wheel balance stand DRO

---
