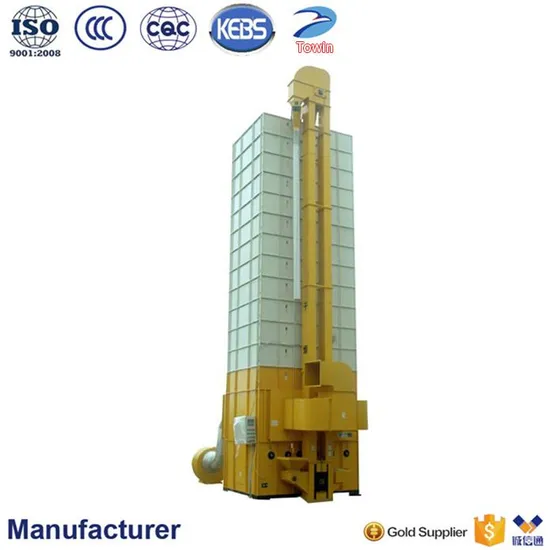

Cross Flow Type Low Temperature Grain Dryer

Product Description

Crossed-flow type low temperature grain dryer
Top and bottom, no screw conveyor design: Eliminating the need for screw conveyors, the elevator's input and output now feature inclined stainless pipes, leveraging the grain's dead weight to fall freely without any risk of crushing.
Pull forward and suck backward with a large air volume design: The drying section incorporates three sets of diagonal blowers, with one providing positive pressure air supply at the air inlet and two others creating negative pressure air suction at the air outlet. This configuration balances air volume, reduces resistance, and enhances the utilization ratio of hot air.
Higher drying layer design: The drying layer surpasses 1.6m in height, with the upper and lower combination of the two sections exhibiting high strength and no deformation. The well-thought-out drying layer design ensures stable grain discharge velocity, uniform drying, and a higher drying efficiency rate.
We have implemented a separate dust blower and dust pipe system to achieve effective dust removal, enhancing the overall working environment satisfaction.
Automatic temperature control is employed to ensure the hot air temperature during the drying process, thereby achieving a high level of drying quality.

Art No.	Model	Capacity	Power	Loading	Discharging	Overall size
99508.61	TWGD32H	32t/batch	15.85kw	60Min	60Min	3.5x3.0x11.427m
99508.61	TWGD35H	35t/batch	15.85kw	60Min	60Min	3.5x3.0x11.955m

HUNAN TOWIN MACHINERY CO.,LTD founded in 1993,It is the best professional company in design, manufacture and sale of grain processing machine.
After 25 years of development, the company has trained a group of high calibre managers and a one-stop service team with a number of proficient, experienced technical backbone and R & D design people.The company has a group of professional technicians to provide 15-1000Ton per day rice processing engineering design for users, and has a group of experienced installation team to provide high-quality and efficient equipment installation, and after-sales service for users.
The company is renowned for its reliable product quality, mechanical stability and considerate technology service. Its products sell well all over the country, and are exported to Southeast Asia, South America, Africa and other countries and regions.

---
