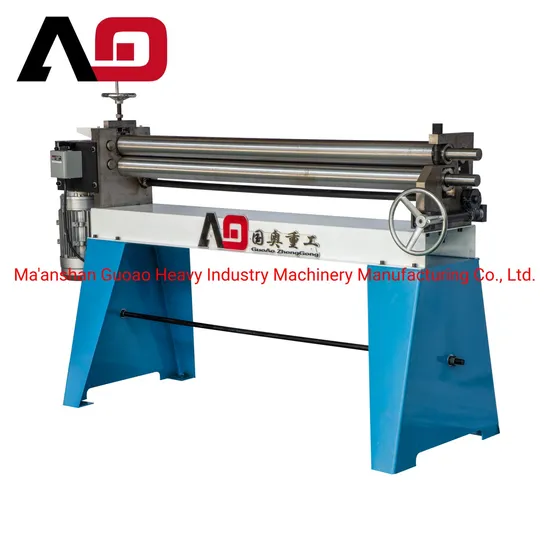

HVAC Electric Metal Sheet Asymmetrical Rolling Machine /Round Duct Sheet Bending Machine

Product Description

Product Description This series of winding machine is suitable for the winding work of the plate. When rolling, the metal sheet material can be rolled into a cylinder shape first, and then welded, can be made into ventilation, water, smoke exhaust, exhaust and other functions of the pipeline, hardware products.
This product has the characteristics of small size, simple structure, easy operation, light weight, easy to move, etc. (by its can be made into universal shaft type according to customer requirements).
Processing features: roll plate is suitable, parts deformation uniform, after processing, parts can be fully stress diffusion, not easy to make the surface production hardening phenomenon, can maintain the original performance of the plate, greatly better than the manual beating into the pipeline, so widely used.
Structure
1. Switch
2. Motor reducer
3. upper roller adjust handwheel
4. side roller adjust handwheel
5. bottom roller adjust screw
6. upper roller orientation pin
7. roller
Specifications

Model	Thickness	Width	Moto	Dimension
W11G-4*600	3mm	600mm	1.5kw	980*510*970
W11G-2*1000	2mm	1000mm	1.5kw	1380*510*970
W11G-1.5*1300	1.5mm	1300mm	1.5kw	1680*510*970
W11G-1.2*1530	1.2mm	1530mm	1.5kw	1880*510*970

Workshop
Packing & Loading

---
