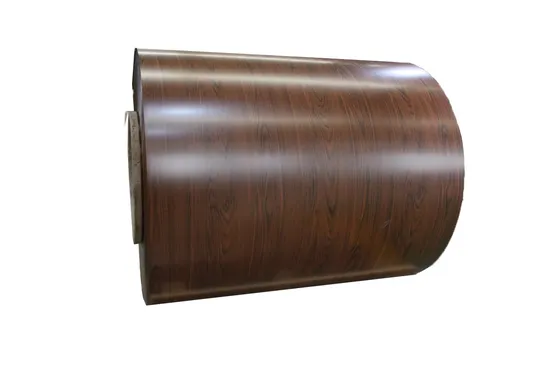

Wood Grain 3004 Series H24 Aluminum Coated Sheet Used in Roofing Sheets

Product Description

Product Description
Aluminium-magnesium-manganese alloy roofing panel is a new type of roofing panel. Aluminium-magnesium-manganese alloy has been widely used in the construction industry, playing an important role in the development of modern buildings in the direction of comfort, lightweight, durability, economy and environmental protection. Due to the advantages of moderate structural strength, weather resistance, stain resistance and easy bending and welding processing, it is widely recognised as a roofing and external wall material with a service life of more than 50 years for building design.

Detailed Photos
Product Parameters Al-Mg-Mn Roofing System
Fluorocarbon colour coated aluminium-magnesium-manganese coil, with its beautiful, light weight, easy processing, durability and recyclable performance, is favoured in various large-span metal roof structures and corrugated insulation systems. Typical alloys: A3004, A5052, A5754; Typical width: 575mm, 578mm, 580mm, 595mm, 600mm, 1000mm, can be slit to any width according to customers' requirements; Typical thickness: 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm; Conventional coatings: 25-28 microns for PVDF2 coating, 35-28 microns for 3 coating. Conventional coating: PVDF 2 coated 25-28 microns, 3 coated 35-38 microns, common silver grey, bright silver, champagne silver, pure white, hammer embossing, etc..
Coated Aluminium Coil
Coated aluminium coils, i.e. "roll coated aluminium coils", means that aluminium coils are pre-coated with colours before they go through the forming process of shearing, bending, rolling, etc., which is different from the spraying method (spraying paint after forming). Currently in the construction market, used in the building surface metal materials, specially designed for the construction of colour coated aluminium, high-speed continuous automatic operation of the roller coating line, the coating is more uniform, stable; a one-time can ensure that the front side and the reverse side of the two layers of coating molding, more efficient, to avoid the surface of the aluminium coil paint coating in the multiple processing is overbaked.

Test Item		Paint
		PVDF		PE And Others
		With Varnish	Without Varnish
Paint Film Thickness, μ		≥22	≥30	≥18
Shine Tolerance		Shine≥80 Unit, ±10 Unit Allowed
		Shine≥20-80 Unit, ±7 Unit Allowed
		Shine<20 Unit, ±5 Unit Allowed
Pencil Hardness		≥1H
Abrasion Resistance, L/μm		≥5			--
T-bend		≤2T			≤3T
Impact Strength		50KG.CM Without Depainting And Crack
Adhesive Force (Class)		≥1
Boiling Water Resistance		Unvarying
Chemical Resistance	Acid Endurance	Unvarying
	Alkali Stability	Unvarying
	Oil Resistivity	Unvarying
	Resistance To Solvent	≥70			≥50
	Scrub Resistance	≥10000 Times Unvarying
	Dirt Resistance	≤15%			--
Salt Spray Resistance(class)		≥ 2 class			--

Company Profile Dingang/Senruida has been a professional manufacturer and experienced exporter of new material,focuses on R&D,manufacturing,processing high-end roller-coating aluminium coil material products since 2002.
For the past decades,we've been growing rapidly in the industry,owning two plants of 160,000 square meter with eight large automatic roller coating lines for aluminium sheet material products.In addition,we have stretching-bending rectifier,cleaning,draw bench,embossing,cross-cutting and vertical slitting machines.With an annual deep processing capacity of more than 20,000 tons. Over 300 skillful workers,with over 200 major projects completed worldwide,our workers pride themselves in production high quality products and taking on projects with a high level of difficulty in fabrication and coating.
FAQ A1: How can I get a quotation from you ?
Q1:You can leave us message, and we will reply in time. Or we may talk on line by Trademanager.
A2:Can I get samples before order ?
Q2:Yes, of course. Usually our samples are free.
A3:How do you make our business long-term and good relationship?
Q4: We keep good quality and competitive price to ensure our customers benefit ;We respect every customer as our friend and we sincerely do business and make friends with them,? no matter where they come from. Please feel free to leave us message if you have any question about us and our products.

Certifications
Packaging & Shipping

---
