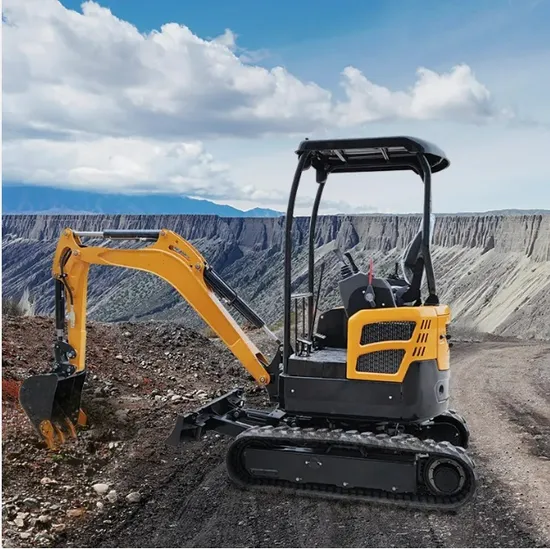

Chinese New Mini Crawler Digger Excavator Machine Mini Bagger CE EUR EPA Engine 1t/2t/2.5t/3.5t Mini Excavator

US$12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FTE20
Usage
GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.025~0.06
Size
Small-Scale
Certification
CE, EPA
Condition
New
Operating Weight
1600kg
Engine Power
16.5kw/2200r.p.m
Standard Bucket Capacity
0.06m 3
Maximum Digging Depth
2042mm
Maximum Digging Height
3129mm
Maximum Digging Radius
3737mm
Swing Speed of Frame
8.5 r.p.m
Transport Package
Export Package
Specification
with CE Approval
Trademark
FOTMA
Origin
China
HS Code
84295900
Production Capacity
10000 PCS/Year

Product Description

Chinese New Mini Crawler Digger Excavator Machine Mini bagger CE EUR EPA Engine 1T/2T/2.5T/3.5T Mini Excavator
Introduce:
1.The compact excavator has a full open hood, which makes it easy to be repaired and maintenance,saving maintenance time and improves work efficiency. 2.The centralized lubrication is a facilitating for lubracating the slewing bearing and the internal tooth surface of the slewing motor. 3.The hyhdraulic oil level gauge,fuel level gauge,coolant reserve tank,window glass washing liquid tank are arranged in outer lower position for easy observation and to add.
Specification sheet
Performance Unit FTE15 FTE18 FTE20
Operating Weight Kg 1400 1750 1950
Engine Model Kubota D722 Laidong 3TE25
Rated Power Kw 10.4KW/2500rpm 18.4 18.4
Bucket Capacity m3 0.025 0.06 0.06
Bucket Width mm 385 435 435
Max Digging Force Kn 9 11.5 11.5
System Working Pressure Mpa 20 18 18
Swing Speed rpm 12~13 10~12 0~9
Traveling Speed km/h 2.1~3.2 2.8 2.8
Gradeability 58 35 35
Ground Pressure Kpa 23 38 38
Operating Range
Max. Digging Distance mm 3529 3860 3860
Max. Digging Depth mm 2017 2050 2050
Max. Digging Height mm 2955 3370 3370
Max. Dumping Height mm 2077 2390 2390
Min. Swing Radius mm 1720 1720 1720
Overall Dimensions
Overall Length mm 3329 3800 3800
Overall Width mm 990 1050 1050
Overall Height mm 2267 2280 2280
Min. Ground Clearance mm 153 210 210
Track Ground Length mm 1190 1050 1050
Track Width mm 200 230 230
