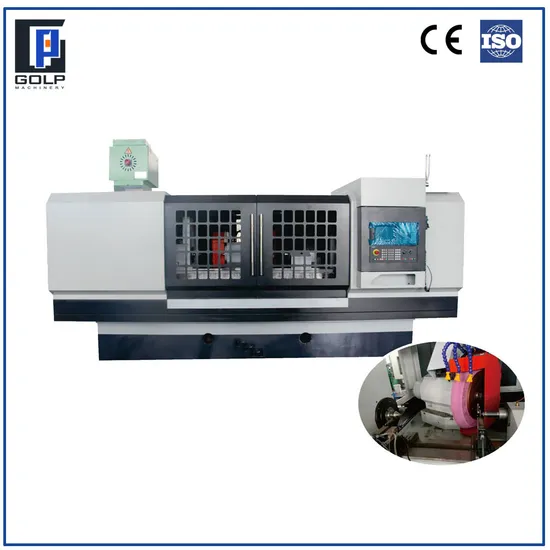

Factory Price Mk1632 Horizontal End Face CNC Cylindrical Grinding Machine for Gears

Product Description

This machine is suitable for mass production of shaft parts, grinding end faces and external circles at the same time; it can grind multiple steps and end faces at one time if the grinding wheel width is satisfied, and it can realize form grinding. The more complex the shape of the part, the more the advantages of the machine can be realized;

1.The main body of the machine tool is cast by cast iron, with a fully enclosed protective cover, a backpack type electrical cabinet in the rear and a rotary operation screen in the front.
2.The grinding wheel spindle adopts sleeve type or dynamic and static pressure spindle, the grinding wheel frame guide rail adopts steel guide rail, the worktable guide rail adopts Flat-V plastic lubrication guide rail, and the servo motor is used to drive the feed mechanism and the worktable to move through ball screw.
end face CNC cylindrical grinding machine

Max.Grinding length		500mm	1000mm	1500mm
Grinding OD scope		8-320mm
Top center hight		180mm
Longitudinal move amount of worktable		550mm	1050mm	1550mm
Rotating angle of worktable		+4,-3°
Moving distance of grinding wheel frame		250mm
Taper of head and tail frame tops		Morse No.5
Chuck diameter of head frame		200mm
Moving amount of tail frame sleeve		40mm
Max. grinding wheel size		600x20-75x305mm
Servo motor power of X axis		11nm
Servo motor power of Z axis		20nm
Positioning accuracy of X/Z axis		8 um
Repeat positioning accuracy of X/Z axis		2 um
Motor power of grinding wheel		11kw
Total power of machine tool		21.5kw
Weight of machine tool		7500kg	8600kg	9800kg
Size of machine tool (mm)		3700x2800x2600	4300x2800x2700	5200x2800x2800
Processing accuracy(standard specimen)	Roundness	0.002mm
	Cylindricity	0.005mm
	Surface roughness	Ra 0.32um
	End face flatness	0.004um
	Perpendicularity between end face and outer circle	0.005um

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
