Turret Milling Machine High Precision Hot Sale RAM Type CE High Speed

Product Description

Product Description
The main performance characteristics:
Product Parameters

Specification		Units	4V	5V
Table size		mm	1270*254(10"x50")	1370*305(12"x54")
T- slot number and size		mm	3*16	3*16
Working table stroke		mm	760*380*380	780*380*380
Telescopic arm stroke		mm	500	500
Spindle nose to working table distance		mm	40-400	80-440
Taper of spindle hole		r/min	Standard:R8; Optional : ISO40	Standard: ISO40
Spindle speed			Standard: 16 shift grade 50HZ:66-4540 60HZ:80-5440	Standard: 16 shift grade 50HZ:66-4540 60HZ:80-5440
			Optional: 65-4000	Optional: (variable)65-3750
Spindle travel		mm	127	127
Spindle feed rate		mm/r	Three steps : 0.04(0.0015")/0.08(0.003")/0.15(0.006")	Three steps : 0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor power		kw/hp	2.2/3	3.7/5
Head rotation (left - right )		°	90°	90°
Head rotation (front - rear)		°	45°	45°
Packaging size(Lx W x H)	Single package	mm	1520x1460x2250	1700x1660x2250
	Two sets of packaging		2280x1650x2250	2280x1700x2250
	Three sets of packaging		2280x1650x2250	2280x1700x2250

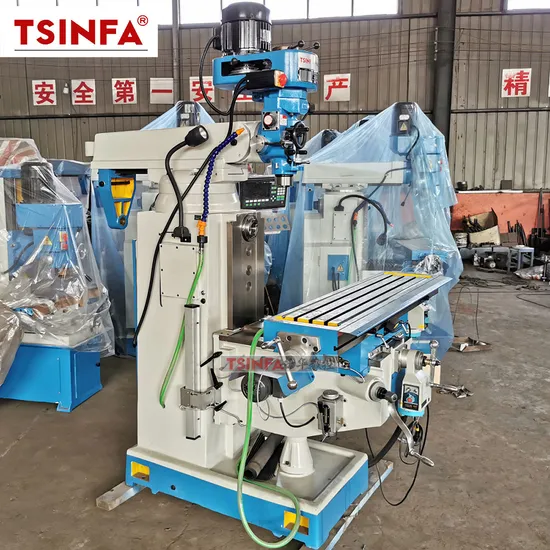

Detailed Photos
Certifications

Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers. Packaging & Shipping

FAQ

Q1:How can l choose the most suitable machines ? Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you . Q2: What's your main products of your company? Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine. Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us. Q4. How do you transport it? Provide Transportation Solution DDP/CIF/FOB/FCA Q5: What's the Payment Terms ? T/T ,30% initial payment when order,70% balance payment before shipment . 06: What's the MoQ? A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know: 1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model! 2.lf need ClF Price, please kindly tell us the port of destination.

---
