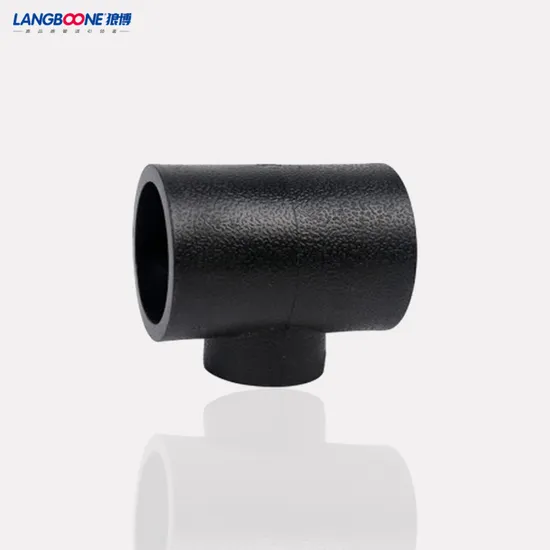

HDPE Termofusion Reducer Tee PE100 TF Butt Wedding Reducing Tee Pipe Fitting

Product Description

View more products,you can click the product keywords below...

PIPES
HDPE pipe	Steel Mesh PE Composite Pipe	Steel Skeleton PE Composite Pipe	Dual-sealing PE Composite Pipe
HDPE Double Wall Corrugated Pipe	Type-B HDPE Drainage Pipe	Type-C HDPE Drainage Pipe	MPP Cabel Conduits
FITTINGS
HDPE Electrofusion Fitting	HDPE Butt Welding Fitting	HDPE Fabricated Fitting	PP Compression Fitting
Steel Plate Socket ElectrofusionComposite Fitting	Dual-sealing Electrofusion Fitting	HDPE Drainage Fitting	MPP Cable Conduits Fitting

HDPE pipe fittings, also called polyethylene pipe fittings or poly fittings, are used for the connection of HDPE piping systems. Generally, the HDPE pipe fittings are available in most common configurations of couplers, tees, reducers, elbows, stub flanges & saddles.,etc.
The HDPE pipe fittings, which are made by excellent quality material, are the ideal choice for the connection of the HDPE pipe that are made by us. The HDPE pipe fittings can be provided in various ranges, consisting: PP compression fittings, HDPE butt fusion fittings, HDPE electrofusion fittings.
LANGBOONE is integrated provider of HDPE piping systems,and we can provide the HDPE pipe fittings with various items & specifications.
The HDPE butt fusion fittings have become the most common & reliable fittings for HDPE pipe connection.LANGBOONE HDPE butt fusion fittings can be provided in a diameter dn50mm to d800mm in SDR17 & SDR11.
The HDPE butt fusion fittings made by PE100 material can offer a pressure rating of PN16 bars for SDR11 & PN10 bars for SDR17, while PE80 fittings are PN12.5 bars for SDR11 & PN8 bars for SDR17.
LANGBOONE HDPE butt fusion fittings can be offered in various items of reducer, elbows, tees, flanges...etc.Advanced production equipment, core equipment imported from Germany and Japan, leading production technology and processPE80/100 Virgin Top MaterialMultitypes fittings with full range diameter,can meet all special requestFlange Surface have clearly sealed waterline,working with rubber flat to reach better tightness

Product Name	Butt Welding/Thermofusion Fittings
Material	PE100(3490LS ) , PE80(ME3440)
Diameter Range	DN25-DN1200
Color	Black ,Grey, Orange, Customized
Type	Straight, 90° elbow, 45° elbow, flange, end cap, equal tee, reducer straight, reducing tee etc.
Working Pressure	Pn10, Pn12.5, Pn16, Pn20
Executive standard	GB/T 13663.3-2018, ISO 4427, EN 12201
Temperature Range	-20°C ~ 40 °C
Application	Gas Supply, Water Supply, Drainage, Sewerage Treatment, Mine And Slurry Pipelines, Irrigation, etc
Package	Carton, Polybag, Color Box or Customized
OEM	Available
Features	Non-toxic, Green Initiaive, Environment Friendly, Corrosion Resistance, Light weight, Easy To Transport And Install, Lower Maintance Costs
Connect	Butt Welding/Thermofusion, Flanged Joint
Advantage	Light weight, Flexibility, Toughness, Chemically Inert, Resistance to Abrasion, Smooth surface, Environmental stress crack resistance, Corrosion resistance, Frost & rodent resistance, Hygienic safety, Easy & quick installation

---
