US$20,000.00-250,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Drying Function
With Drying Function
Automatic Grade
Automatic
Computer Control Panel
Computer Control Panel
Function
Paper Egg Tray Making Machine
Product
Egg Tray,Egg Box,Pizza Tray,Seeds Pot
Dryining
Fully Fuel Drying
Transport Package
Wood Packing
Specification
Roller type
Production Capacity
66sets Per Year
Product Description

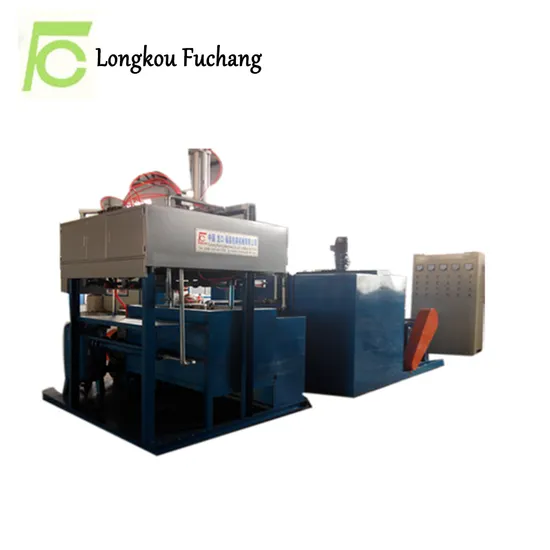

Egg Tray Forming Machine -Egg Tray Making MachineProduct Introduction: Egg tray making machine is a kind of environmental protection equipment. It can make egg box, paper egg The pulp paper egg tray machine is controlled by PLC, the degree of the automation is high, and it is easy to learn, service is convenient. Also the scope of the machine is widely. It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing.
Four main parts: Paper Pulping system, Forming system, Drying line, Packing system. Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.
Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
Our Egg Tray Machine production line has Fully Automatic and Semi Automatic two types , both have computer control system. If you don't want this drying system, it is also OK. Then you will have to do the work of drying up the product trays manually.
The semi-automatic egg tray machine production line is not equipped with drying system, after mixing pulp process and automatic forming process, the wet egg trays will be moved to another place for drying by workers, and then product can be dried by sunshine. The semi-automatic egg tray machine production line is suitable for all kinds of paper pulp molded product.
The automatic egg tray machine production line is equipped with one drying system, after mixing pulp process and forming process, the wet egg trays will be transferred to the drying oven automatically by chains, and then product can be dried in the oven with hot air supplied by the boiler. The automatic egg tray machine is suitable for clients who wants big capacity of paper egg tray/egg carton/shoe tray/ bottle tray demand.
Features of egg tray machine a. High automation, low labor cost
b. Low production cost
c. Energy saving(by 30%-50% compared with other manufacture)
d. Water saving(complete water treatment system equipped)
e. Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)
f. Stable final product quality(same weight, same dimention,strong and good appearance)
Systerm compisition of Egg tray making machine
paper egg tray making machine systerm composition | automatic paper molding egg tray making machine |
1 Pulp Making System | Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on. |
2 Moulding System | Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on.. |
3 Drying System | Multilayers metal drying line ,Reillo Burner etc . |
4 Packaging Machine | Egg tray stacker ,baling press etc . |
Machine working picture :
Machine working flow:
Finished Product:
This type machine could produce the egg tray,egg box, pizza box, seeds cup,flower pot,industrial tray etc by changing the forming mould and the transferring mould.
Machine used Brand as following:
We are able to customerized the machine motor and electrial parts brand.
Our Service:
1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming machine exclude the parts of quick-wear. The spare parts will be provided according to the client requirement.2.The pre-production:we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc. 3.The installing issue: fuchang will send engineers to customers' place . The customer should help installation, the engineer is responsible for installation, testing and training for 30 days.4.The price:We are a manufacturer and we can provide the considerate price and make sure the quality .
>>
