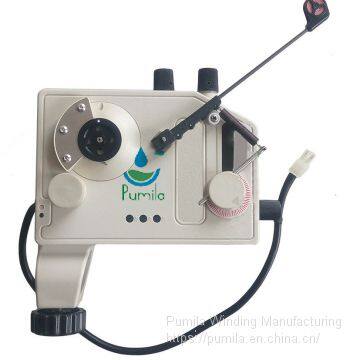

Electronic Wire Tensioner/Yarn Tensioner for Coil Winding Machine ET Series

Product Details

Product Description

Product Description

Model	Tension Range (g)	Applied wire diamiter(mm)
ET-30	2-30	φ0.02-φ0.06
ET-100	10-100	φ0.04-φ0.12
ET-200	15-200	φ0.06-φ0.16
ET-300	30-350	φ0.08-φ0.25
ET-500	60-500	φ0.12-φ0.35
ET-1000	100-1000	φ0.15-φ0.45
ET-2000	200-2000	φ0.20-φ0.60
ET-5000	500-5000	φ0.30-φ1.00
ET-10000	2000-10000	φ050-φ1.80

Product feature:
--To achieve closed-loop tension control, automatic control precision up to ± 2%(This feature is only for part of the model);
--Set features a variety of tension can be switched with the inut signal the output tension of a rapidly changing (its output value is equal to the corresponding set value), to achieve the purpose of inteligent control;
--Excitation currents through the tension control, high control precision, stability and availability of the tension has nothing to do with the winding speed, can be adapted to high-speed winding.
--With data acquisition and output capabilities with computer through RS232C communication, to achieve tension curve and data monitoring.

---
