Premium Ring Die - Ideal for Livestock and Poultry Feed

Product Description

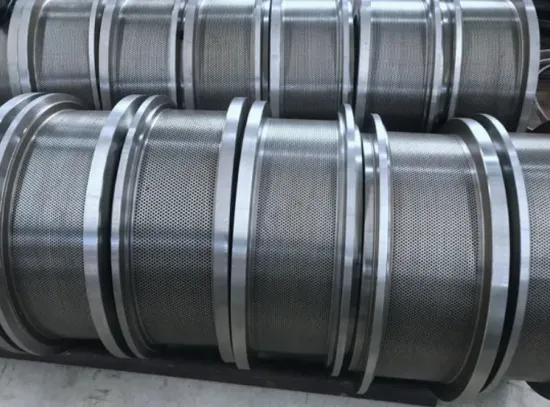

The Ring Die is a crucial component of pellet mills, designed for producing high-quality pellets from various materials, including animal feed, biomass, and wood. Made from durable stainless steel, our ring dies ensure long-lasting performance and resistance to wear and tear. Engineered for precision, the die's design allows for optimal compression and shaping of pellets, resulting in uniform size and density, which are essential for efficient feeding and energy output. Specific Applications Our Ring Die is widely used in the production of animal feed pellets, including poultry and livestock feed, as well as biomass pellets for energy generation. It is suitable for both small-scale and large-scale operations, enhancing productivity in feed and biomass processing industries.
Parameter Description

MODEL	INSIDE DIAMETER	OUTSIDE DIAMETER	WIDTH	WORKING BAND
DFGB	900	1030	296	226
DFPB	420	489	182	138
DMFC	303	381	95	62
DPAA	660	790	236	178
CPM3020	508	556	238	156
CPM6122	508	660	238	156
CPM7726	673	890	325	180
CPM7730	762	965	368	210
MUZL350	350	423	138	100
MUZL420	420	570	144	136
Remarks: Various brands and models can be customized

Product Advantages High Durability: Constructed from stainless steel, providing excellent resistance to abrasion. Enhanced Efficiency: Optimized design for superior pellet compression and shaping. Customizable: Available in various sizes and specifications to meet specific production needs. Cost-Effective: Reduces downtime and maintenance costs due to its long lifespan. Installation Method The Ring Die can be easily installed in most standard pellet mills. Users should follow the manufacturer's guidelines for proper installation and alignment to ensure optimal performance. Regular maintenance checks are recommended to prolong the life of the die.

Company Introduction and Market Advantages Zhenjiang AGS Machinery Co., Ltd. is a leading manufacturer of machinery for the feed and biomass industries. With years of expertise and commitment to quality, our products are designed to meet the evolving needs of the market. Our competitive pricing, combined with exceptional customer service and technical support, positions us as a preferred choice among global clients.

---
