Product Details
Product Description
Product Description

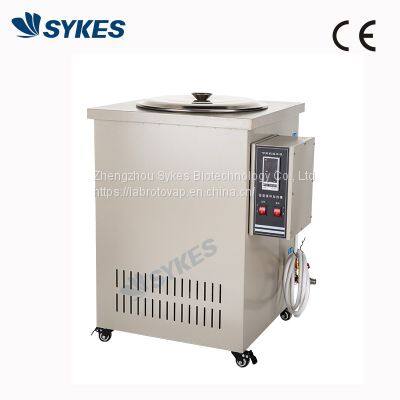

Heating Bath Circulator GXC Series can provide heating fluid to jacketed reactors or other devices. Heat transfer fluid can be water or oil according to specific temperature requirements. It is widely used for drying, concentration, distillation, dipping in chemical reagents, dipping medicines and biological products.
1. Bath adopts anti-corrosion SUS304.
2. Heating tube will be immersed in the middle of the oil/water, high thermal efficiency, low power consumption, electronic thermostat features.
3. Intelligent temperature control with high precision.
4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.
5. Air cooled type
6. Equipped with lockable caster.
Model
| GXC-10
| GXC-20
| GXC-30
| GXC-50
| GXC-100
|
Bath material
| SUS304
|
Bath liquid capacity (L)
| 10
| 20
| 30
| 50
| 100
|
Housing material
| Spray coated steel
|
Movement mode
| Lockable caster
|
Maximum temperature for
no-loading (℃)
| 200
|
Heat transfer fluid
| Water or oil
|
Temperature range (℃)
| Water bath：Room temperature ~ 98;
Oil bath：Room temperature ~ 200
|
Heating power (W)
| 2000
| 3000
| 4500
| 6500
| 9000
|
Temperature control mode
| Intelligent temperature control
|
Temperature stability (℃)
| ±1
|
Flow of circulating pump (L/min)
| 20
|
Pressure of circulating pump (MPa)
| 1.45
|
Oil heat transfer fluid
| Viscosity: 50
|
Power supply (V/Hz)
| 220/50
| 380/50
|
>>
