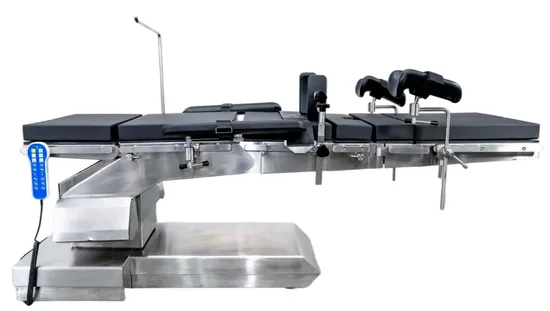

Versatile End-Biased Column Hydraulic Operating Table for Surgeons

Product Description

Product Description End-biased column electro-hydraulic operating table
The hydraulic system uses imported parts, works stably and reliably, has a heavy load capacity and low noise, and meets the needs of different surgeries in the hospital's thoracoabdominal surgery, brain surgery, gynecology, urology, ENT, orthopedics and other departments.
PRODUCT CHARACTERISTICS
01.The six-section table top is divided into: head board, shoulder board, back board, hip board, foot board, and separated leg board. The head and leg boards are interchangeable, fully meeting the needs of various surgical positions;
02.The eccentric pillar structure allows the operating bed to obtain the maximum X-ray perspective space;
03.Low posture and large lift to meet the needs of different surgical postures;
04.The head and leg boards are interchangeable, and you can perform whole-body C-arm fluoroscopy and imaging examinations on the patient without placing the patient in the opposite direction or adjusting the table in advance;
05.The main body material of the bed is SUS304 stainless steel, which is beautiful in appearance, dustproof and waterproof, stable and practical;
06.The table top is made of X-ray transmissive material, and there are cassette guides under the table to allow you to enter the cassette to take pictures;
07.Electric brake lock for easy cleaning, moving and fixing;
08.The operating table has two control systems: a wired hand controller and a bed emergency control panel. The controller has a lock key to prevent misoperation;
09.Automatic level return can be adjusted with one button, which is convenient for emergency treatment:
10.One-click Trendelenburg and reverse Trendelenburg, easy to experiment with lumbar bridge position, convenient for gallbladder and kidney surgery needs;
11.Equipped with a built-in emergency power supply, the emergency power supply can be charged automatically. When the network power supply is cut off, the emergency power supply can automatically jump to the working state. The high-performance rechargeable battery ensures that the operating bed can work for more than 80 surgeries without power supply;
12.The side rails meet international standards and are made of high-quality stainless steel. They are corrosion-resistant, easy to clean and durable. They can be used with a variety of accessories to meet the needs of modern surgery;
13.The bed surface is made of memory foam mattress, which is easy to clean and disinfect;
14.The T-shaped base design gives the operating table extremely high stability and good mobility, and provides the doctor with more foot space;
15.It can be equipped with a skull frame with X-ray transmission configuration, and its perfect combination will become the most satisfying kumite for neurosurgeons;
16.The operating table is equipped with a built-in battery to ensure normal use of the equipment in the event of a power outage.
The main technical parameters

Table front and back tilt angle	Front tilt≥28°,back tilt≥28°
Table left and right tilt angle	Left tilt≥15°, Right tilt≥15°
Back plate folding angle	Upward bend≥75°,Downward bend≥40°
Head plate folding angle	Upward bend≥40°,Downward bend≥45°
Leg plate folding angle	Upward bend≥10°Downward bend≥90°Fold down≥90°
Lifting stroke	≥300mm
Table surface Specification	Length≥2100mm,Width≥520mm(excluding side guide rails)
Minimum table height	≤650mm(Mattress not included)

Detailed Photos
