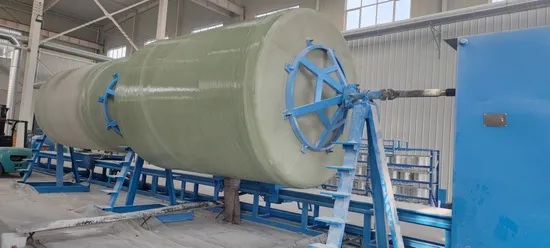

Large Diameter GRP Tank Filament Winding Machine and Production Equipment, Spindle Speed: 0-20r/Min

Product Description

I.Brief introduction of equipment
Micro-control winding machine produced by our company is a high-tech mechatronics product. The whole winding process is controlled by microcomputer program, which has the characteristics of beautiful line shape, high accuracy and convenient operation and use. The host computer of microcomputer control system is OPC industrial control computer. Industrial keyboard, advanced selection, reliable performance and high control accuracy. The microcomputer control program adopts adaptive control technology. Under any conditions, the movement relationship between the core die and the guide head is strictly maintained, which has strong adaptability and can automatically correct errors. When producing different products, it is very convenient to change the speed ratio relationship through the method of parameter satisfaction, and the system can store n product parameters. The color Chinese display interface is adopted, which requires few input parameters, flexible and convenient parameter setting, and has alarm and protection functions. Equipped with manual/automatic switching function, which is convenient for users to operate.
II.the main technical parameters:
1. winding diameter range: DN3000-DN4000mm.
2. The maximum winding length is 6000mm.
3. Spindle speed: 0-20r/min
4. The maximum drawing speed is <=120m/min.
5. The maximum width of roving is 220mm.
6. The winding angle ranges from 45° to 90°.
7. The total installed capacity is 15KW.
8. The production capacity is 1300kg/h

---
