Unveiling a cutting-edge series that masterfully detects an impressive variety of objects, adaptable to virtually all environments. Boasting exceptional high power capabilities, combined with a versatile array of customizable head options, this series delivers outstanding performance like never before. The ultra-modern OLED display offers sharp, vividly detailed information, ensuring you access vital data effortlessly and promptly, precisely when you need it the most. Additionally, experience a dramatic reduction in setup time, allowing you to commence operations swiftly with unmatched efficiency. Effortless integration is achieved through our streamlined wiring solutions and fiber optics, complete with integrated status indicators. This guarantees a process that is not only straightforward but also remarkably reliable, providing you with peace of mind and assurance in your operations. Enjoy unparalleled convenience with the feature that enables settings to be saved for up to 8 connected amplifiers on the Multi-Output Unit. In the event of an amplifier replacement, these settings can be seamlessly batch written to new units, completely eliminating the tedious task of manual recalibration. Furthermore, configure up to 3 memory banks to enable an effortless and seamless transition between different machine runs, significantly enhancing productivity and operational flexibility.

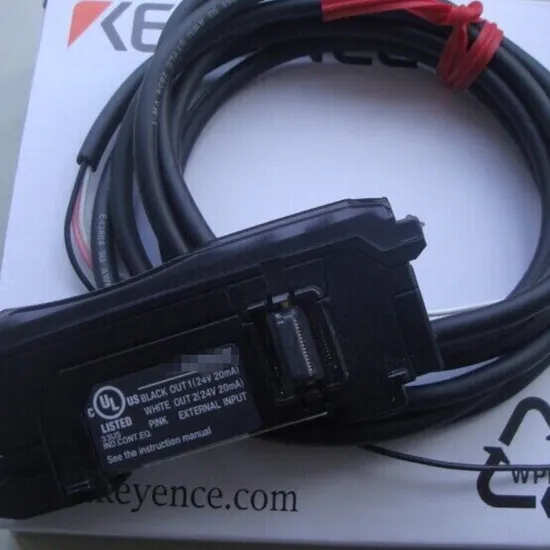

Model
| FS-V32C
|
Type
| 1-output + 1-input
with M8 connector
|
Output
| NPN
|
Main unit/Expansion unit
| Expansion unit
|
Control output
| 1 output
|
Monitor output (1 to 5 V)
| N/A
|
External input
| 1 input
|
Connector
| M8
|
Light source LED
| Red, 4-element LED (Wavelength: 640 nm)
|
Response time
| 33 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /16 ms (MEGA TURBO)
|
Output selection
| LIGHT-ON/DARK-ON (switch-selectable)
|
External inputy
| Input time: 2 ms (ON)/20 ms (OFF) min.*2
|
Unit expansion
| Up to 16 expansion units can be connected (a total of 17 units). Note that the 2-output type should be counted as two units.
|
Number of interference prevention units
| Normal operation
| HIGHSPEED:0 FINE:4 TURBO/SUPER/ULTRA/MEGA:8
|
Rating
| Power voltage
| 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
|
Power consumption
| Normal: 710 mW max. (Using 24 V, 29 mA max., using 12 V, 40 mA max.)/Power saving: 540 mW max. (Using 24 V, 22 mA max., using 12 V, 28 mA max.)*3
|
Environmental resistance
| Ambient light
| Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.
|
Ambient temperature
| -10 to +55 °C 14 to 131 °F (No freezing)*4
|
Relative humidity
| 35 to 85 % RH (No condensation)
|
Vibration resistance
| 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
|
Shock resistance
| 500 m/s2, 3 times in each of the X, Y, and Z directions
|
Case material
| Polycarbonate
|
Accessories
| N/A
|
Weight
| Approx. 45 g
|
