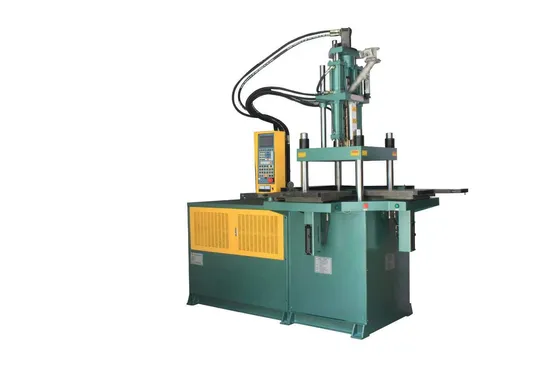

Small Vertical Injection Moulding Machine Plastic Injection Moulding Machine

Product Description

XH-437 Small injection molding machine Product Application
This type plastic injection molding machine reduces and improves the production machine, which has little volume and strong removability, injection molding machine is suitable for classroom teaching and the making of the small simple. This injection molding machine contains opening mould and closing mould parts, melting plastic injection parts, machine body, heating system, control system, and charging device.
Applicable raw materials:PP,PC,PVC,ABS,PE,PA6,PS,PEI,PMMA,POM,TPU,TPE,etc.
Technical Parameters

	Model	Unit	35T
Injection unit	Screw diameter	mm	26	28	32
	Injection pressure	kgf/cm2	1677	1446	1107
	Theoretical Injection capacity	cm3	61	71	93
	Injection quantity	G/oz	56.6/2	65.6/2.3	85.7/3
	injection rate	cm3/s	41	48	62
	Screw stroke	mm	116
	Screw speed	Rpm	0-148
	nozzle contact force	Tons	3.5
	Nozzle stroke	mm	150
	Number of temperature control segments		3
Clamp Unit	Clamping force	Tons	35
	Platen size	mm	500*340
	Mould post spacing	mm	360*200
	Mini mold thickness	mm	60/145
	Mold opening stroke	mm	215
	Max mold opening distance	mm	275/360
	project the force	Tons	1.3
	ejection stroke	mm	35
Hydraulic system	Max hydraulic pressure	kgf/cm2	140
	Oil pump discharge	cc/rec	31
	Cooling water consumption	Lh	500-700
	Motor power	Kw	4(5.5HP)
	Electric heating capacity	Kw	2.4
	Total power consumption	Kw	6.4
Other	Machine weight	Kg	1200
	Machine dimensions	mm	1450*900*2500
	Packing weight	Kg	1300
	Packing size	mm	1600*1100*2200

Special models can be designed according to customers' requirements. Main Features
1) Clamping force: 10T to 500T
2)Injection weight: 35g to 850g
3)Vertical four columns clamping,vertical injection
4)Suitable for insert injection molding process.
5)We can upgrade to servo motor for customer's needd
6)Can save energy from 50%-70%
Company Profile
Guangdong Xihua Machinery Co., Ltd. is a research and development, manufacturing, sales, service in one of the laboratory equipment high-tech enterprises. Products are widely used in plastics, rubber, silicone, petrochemical, wire and cable, environmental protection, new energy, medical, automotive and other industries. Has a number of domestic advanced fully automated production equipment, with a trial production testing laboratory in line with national standards, equipped with advanced testing and analysis instruments.
Xihua has been working closely with many top 500 enterprises, well-known domestic enterprises and scientific research institutions for many years, and the international market covers Russia, Germany, Australia, the United States, Canada and Mexico. Brazil, India, Saudi Arabia, Singapore, Malaysia, South Korea, Thailand, Turkey, Philippines, Vietnam, etc.

Certifications

Packaging & Shipping
We first wrapped the fuselage with a winding film and fixed it initially. Then it is further wrapped with pearl cotton to avoid damage to the machine due to bumps on the road, and finally the wrapped machine is placed in a wooden box for transportation to ensure the safe transportation of the product.

Packaging
Size	1600*1100*2200mm
Weight	About 100kg
Packaging Details	Wooden box
